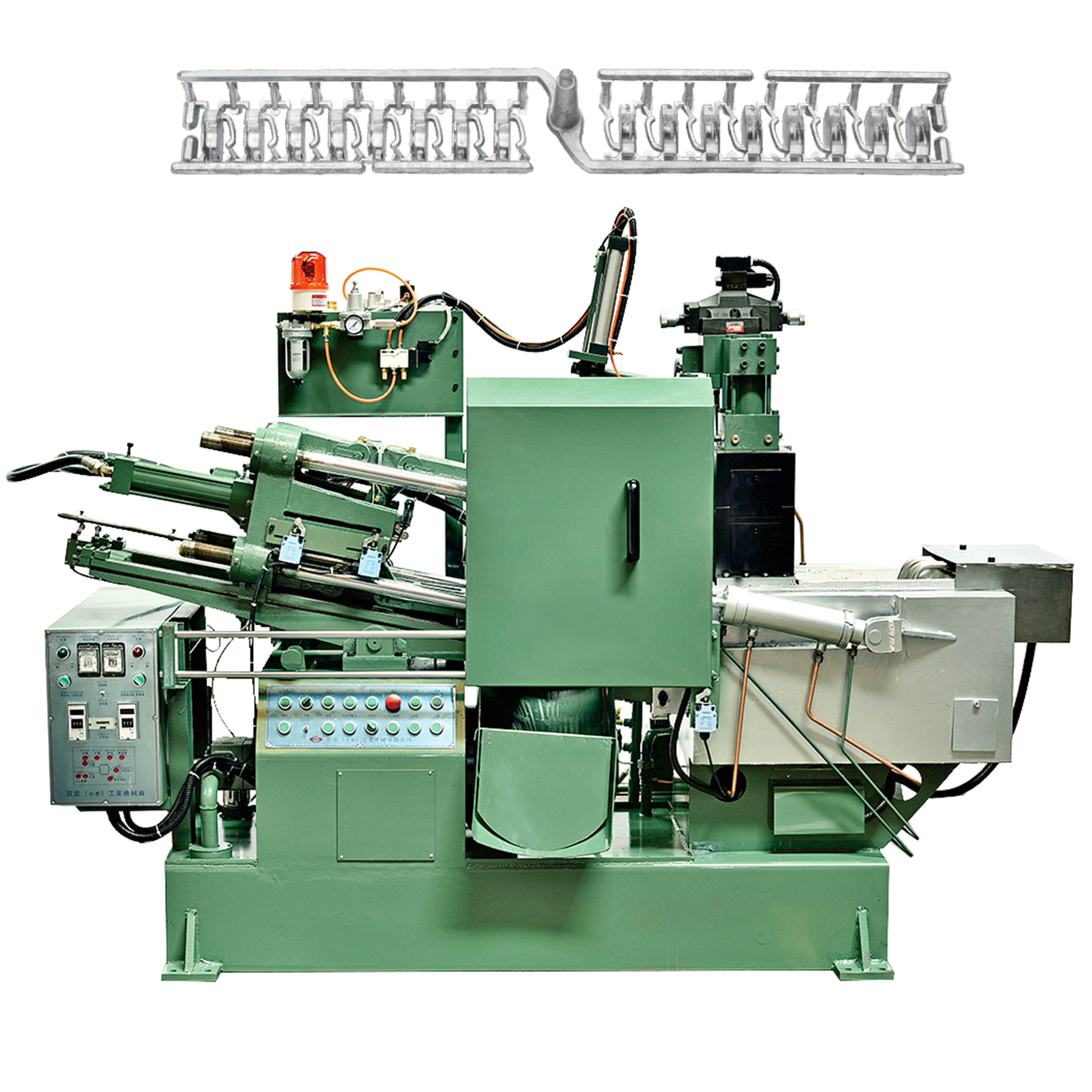

12 20 30 ton Hot Chamber Metal Zipper Hardware Accessories Pressure Oven Die Casting Molding Press Machine 15t Parts for Zipper
Generate QR code
-
When You'll Get It:Sep 10 - Sep 14
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
Key attributes
Other attributes
| Machine Type | Hot Chamber Die Casting Machine |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Ordinary Product |
| Warranty of core components | 2 years |
| Core Components | Engine, Motor, Gear, Pump |
| Place of Origin | Guangdong, China |
| Condition | New |
| Weight (KG) | 900 |
| Warranty | 2 years |
| Key Selling Points | Automatic |
| Applicable Industries | Manufacturing Plant, zinc products |
| Showroom Location | Canada, Turkey, United Kingdom, Peru, Indonesia, Pakistan, Russia, Spain |
| Max.Thickness of Die Block (mm) | 280 mm |
| Min.Thickness of Die Block (mm) | 100 mm |
| Ejection Force(kN) | 100 kN |
| Ejection Stroke(mm) | 200 mm |
| Brand Name | QLQ |
| Voltage | 380V |
| Dimension(L*W*H) | 2.7*1.2*2.3m |
| Power (kW) | 15kw |
| Product type | Znic Hot Chamber Die Casting Machine |
| Function | only for zinc die casting |
| Model | 15T/25T/30T |
| Certification | CE |
| Frequency | 50HZ |
| Power | 21kw |
| Weight | 800kg |
| Phase | 3PH |
| Die thickness(min~max) | 25KN |
| Core Components | PLC,Pump |
Packaging and delivery
| Packaging Details | Standard export packing |
Product Image
Our Advantages

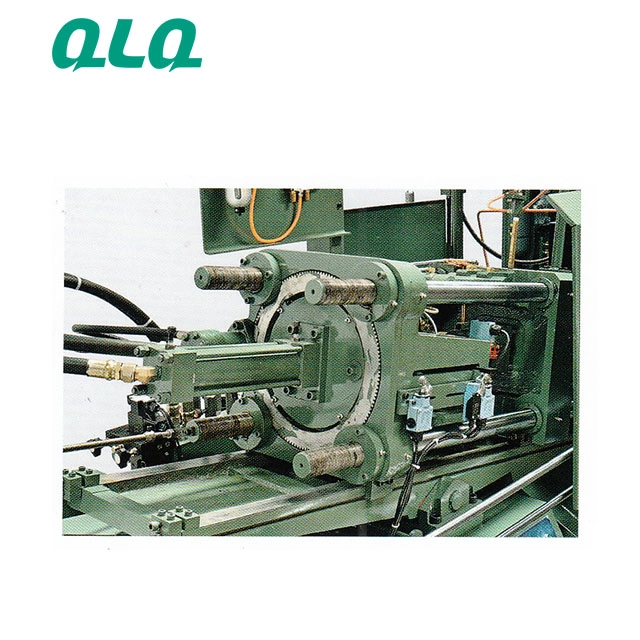

1- Our die-casting machine adopts five points mould clamping mechanical automatic adjusting mould to increase the machine performance.
2- Our die-casting machine adopts automatic oil supply system and the steel pins and tie bats are not easy to broken. It adopts buckle nozzle cylinder to increase working efficiency.
3- By adopting jogging mould locking and mould opening, this machine is more safe to be operated.
2- Our die-casting machine adopts automatic oil supply system and the steel pins and tie bats are not easy to broken. It adopts buckle nozzle cylinder to increase working efficiency.
3- By adopting jogging mould locking and mould opening, this machine is more safe to be operated.
We have different models of die casting machine, such 15T, 25T , 30T, and etc. Besides, we also have machine with or without PLC&HMC system. Price based on your requirement.
|
Which ton I want
|
15 Ton
|
25 Ton
|
30 Ton - 50 Ton
|
30 Ton - 50 Ton
|
|
Suitable items
|
slider, puller, small button ( mould is small). spead is fast
|
Mould is more bigger, output is more
|
spead is not so fast, mould is big,output is more much
|
for big products, bag hardware
|
|
Item
|
Unit
|
15T
|
25T
|
30T
|
|
Mould clamoing pressure
|
KN
|
150
|
250
|
300
|
|
Oil pump flow
|
L
|
PV2R2-33
|
PV2R2-47
|
PV2R2-53
|
|
Oil drum capacity
|
L
|
180
|
250
|
350
|
|
Rated pressure
|
Kg/c㎡
|
50
|
80
|
80
|
|
Energy accumulator
|
L
|
10L
|
16L
|
20L
|
|
Motor power
|
Kw
|
5.5HP
|
7.5(10HP)
|
7.5(10HP)
|
|
Tie bars diameter (for fixing mould)
|
MM
|
210x210
|
230x230
|
270x270
|
|
Casting force
|
MM
|
15
|
15
|
30
|
|
Casting stroke
|
MM
|
80
|
80
|
100
|
|
Opening stroke
|
MM
|
135
|
170
|
200
|
|
Mould thickness (min-max)
|
MM
|
120-180
|
100-270
|
100-280
|
|
Tie bars diameter
|
MM
|
φ35
|
φ45
|
φ50
|
|
Ejection bar diameter
|
MM
|
φ35
|
φ38
|
φ45
|
|
Shooting pole diameter
|
MM
|
φ38
|
φ30
|
φ40
|
|
Casting capacity (actual)
|
G
|
60-120
|
60-180
|
60-350
|
|
Ejection position
|
MM
|
0
|
0
|
0
|
|

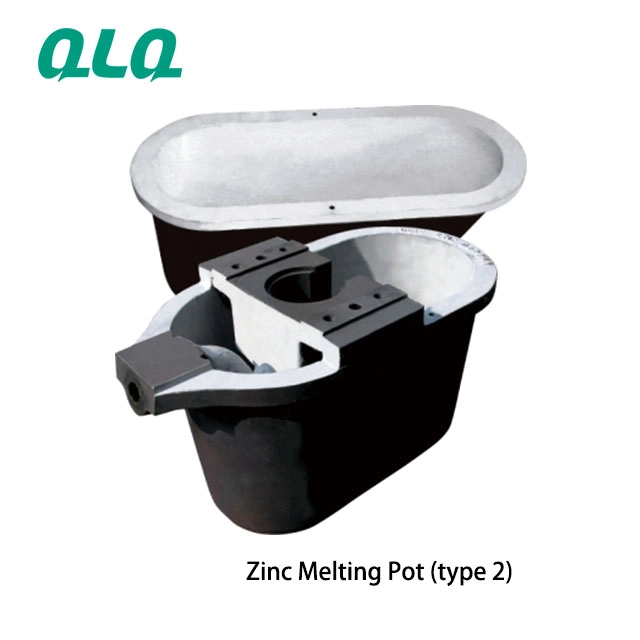

Zinc melting pot capacity
|
Kg
|
120
|
150
|
150
|
|
Centre distance of front mould screw
|
MM
|
120
|
120
|
120
|
Product Specification
Packing & Delivery
Our after-sell Service
1) QLQ after-sales team training customer's technicians how to use our machine in their factory.
2) We can offer many useful videos to teach customer's technician how to use our machine well. We will also provide inspection
report before shipment.
report before shipment.
3) Customers can come to our factory to learn how to make the high quality products by our machines.
4) We communicate with customer through online video for solving problem.
Company Profile
FAQ
1. Should I choose how many ton die casting machine?
QLQ: It depens on your products. For example, if you want to make non-lock slider, we suggest to choose 25ton. And if you want to make auto-lock
