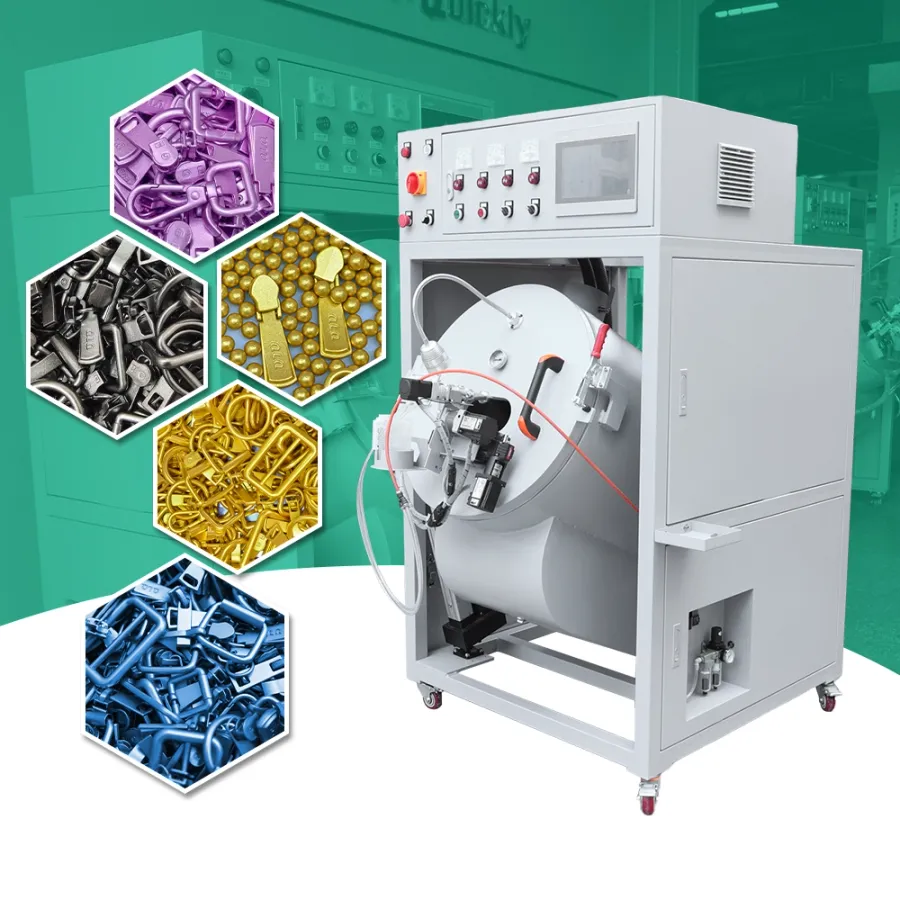

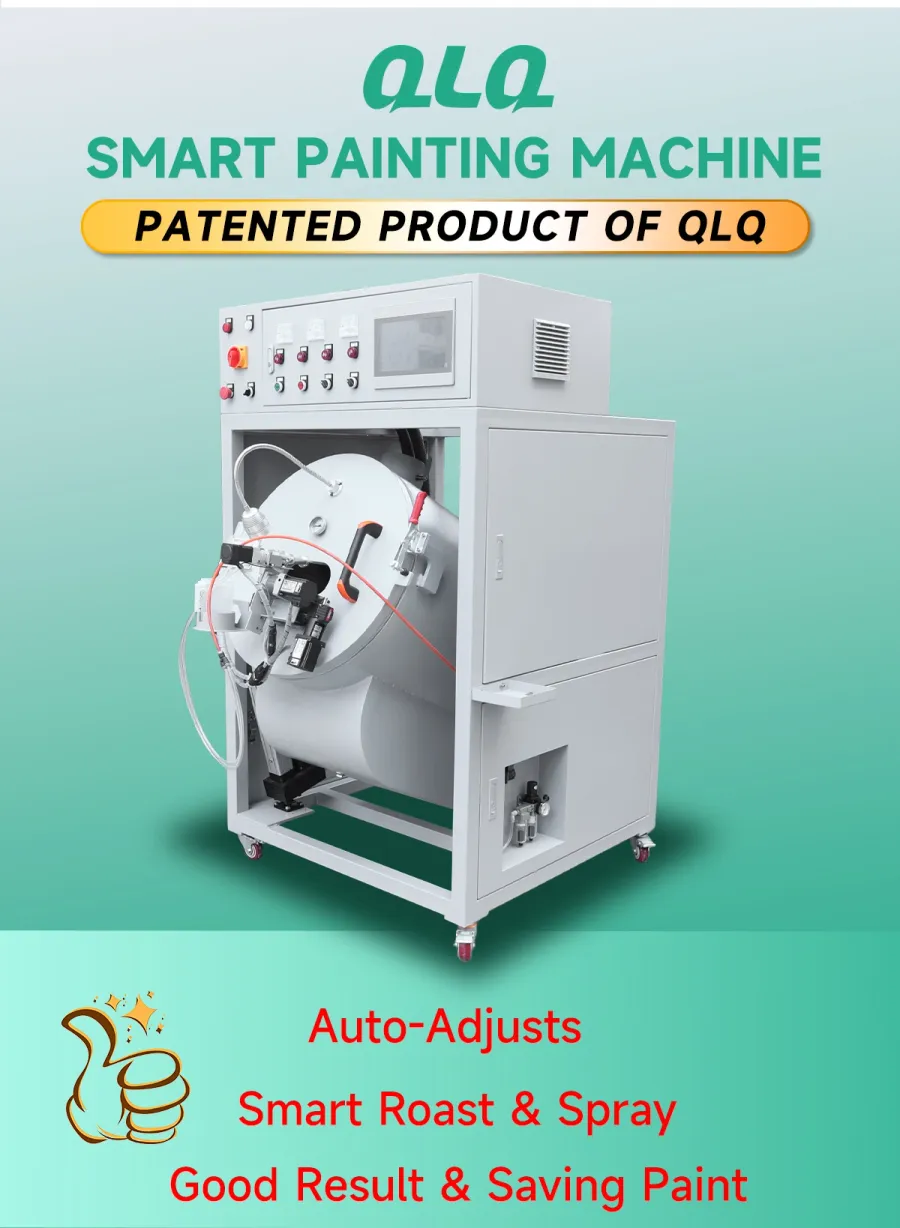

A batch barrel spray painting machine for zipper sliders, buttons and bag hardware. Load 20-25 kg, press start, and the drum heats, sprays and cures the whole batch in about 45 minutes with one operator watching five machines.
| Batch capacity | 20-25 kg per cycle |
|---|---|
| Cycle time | About 45 minutes |
| Operators needed | One operator per five machines |
| Total power | 12 kW, 220 V, 3 PH, 60 Hz |
| Drum speed | 0-60 r/min, adjustable |
| Post-processing | None. Parts are ready to use after spraying |

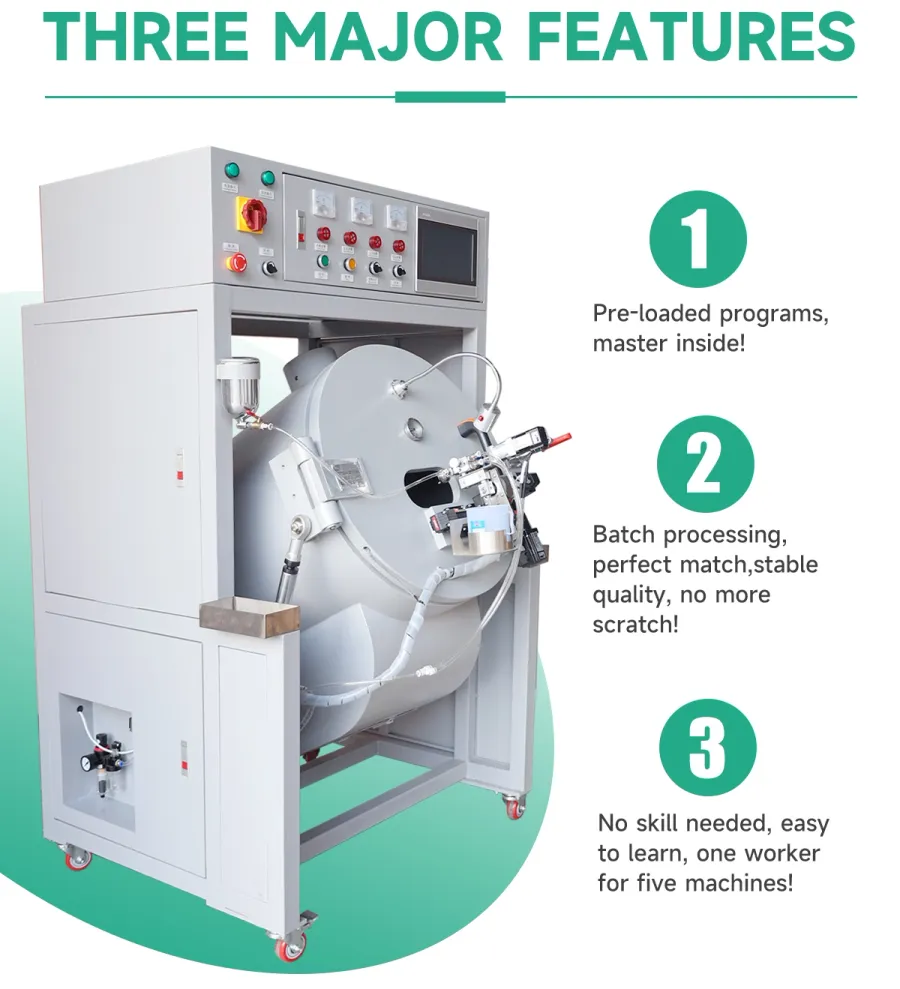

Hand spray booths need one painter per booth and a second worker to turn parts. Here the drum turns the parts and the gun sprays on program, so a single operator loads, unloads and starts five machines. That is the difference between building a painting team and adding one loader per shift.

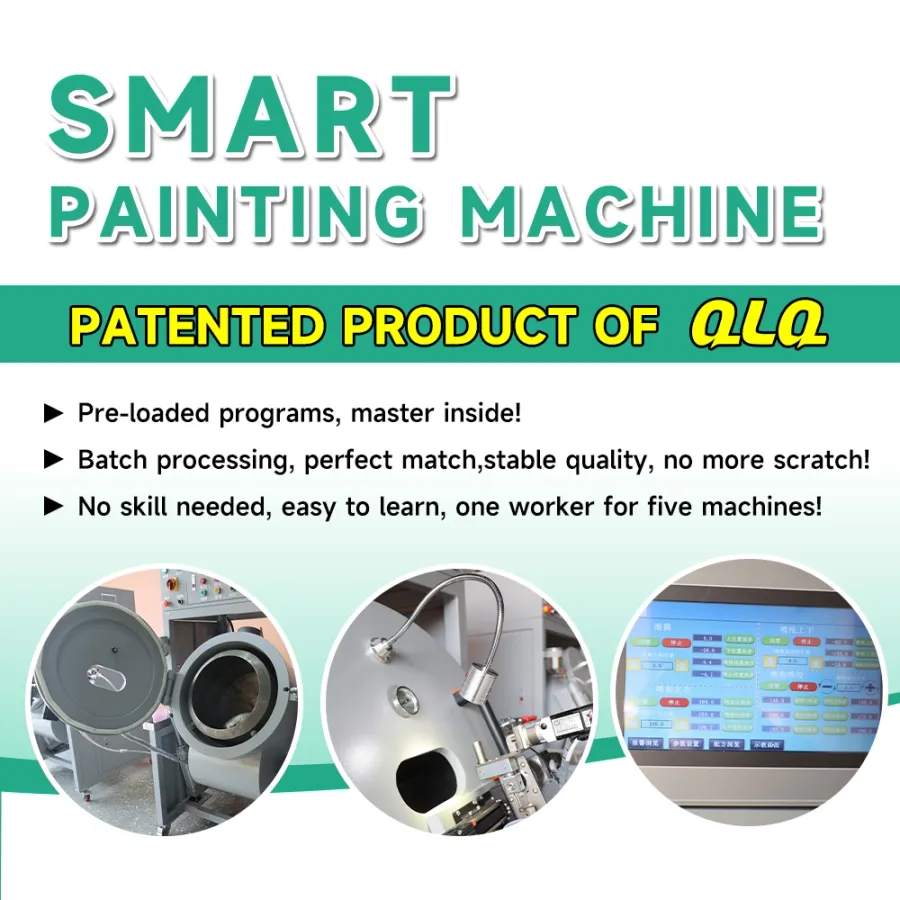

Drum angle, rotation speed, forward and reverse direction, rotation and pause time, gun pressure, coverage range and temperature are all recorded and recalled. Batch three matches batch one without asking the operator to remember anything, which is what keeps repeat orders from coming back as color complaints.
Heating, spraying and curing happen inside the same drum, so parts come out ready to use. Skipping the drying and baking step saves floor space, electricity and handling, and it removes the queue that usually sits between your painting room and your packing line.
Slider bodies, complete sliders, buttons and bag hardware are all handled in batches, so you can paint a mixed production day instead of setting up a booth per color. Send photos of your part and we will confirm fit before the order.
How to check your part fits: parts up to 15 cm, no razor-sharp edges, and no risk of damage when parts rub against each other inside the rotating drum.
Color changes: switch the inner drum. Drums are 316 stainless steel and are cleaned by soaking in sulfuric acid; an automatic sand blasting machine is optional if you change colors often.

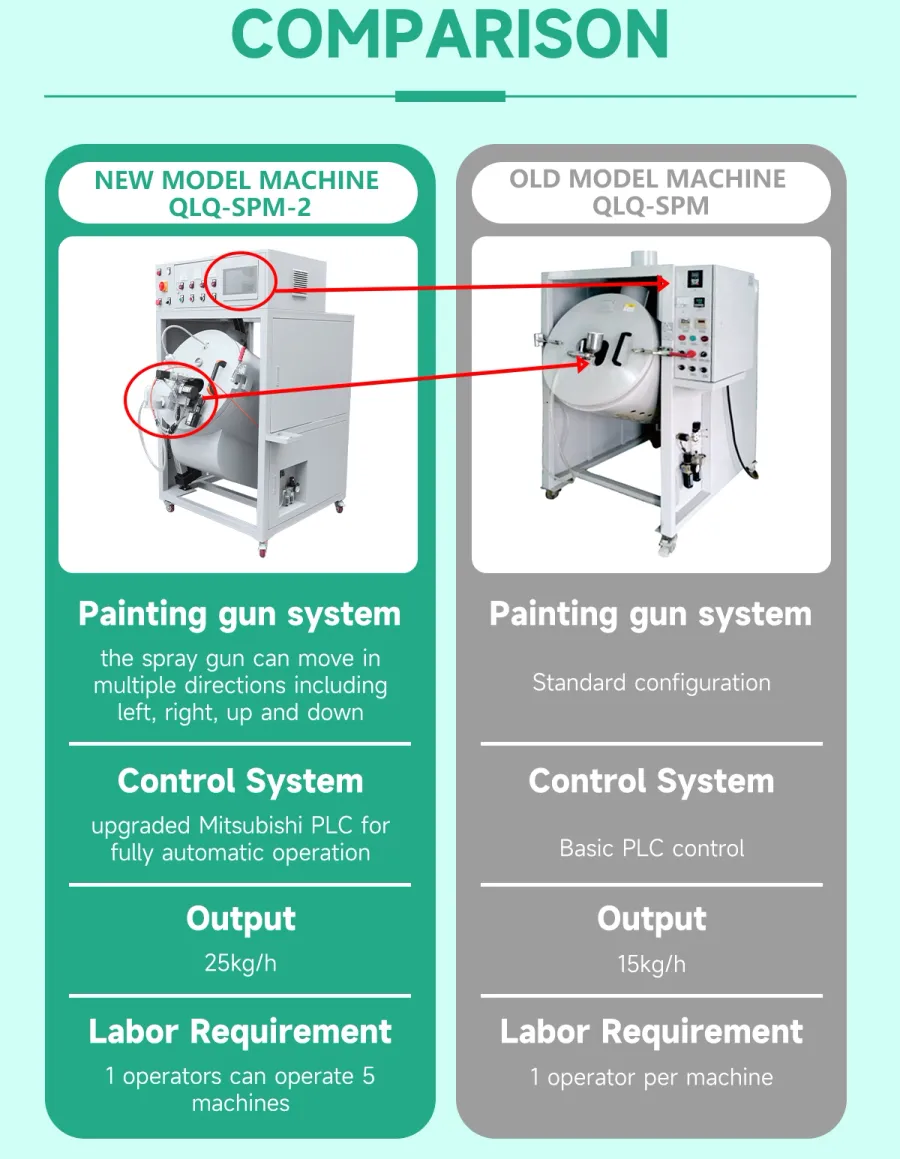

| Model | QLQ-SPM-2 (New Model, Version 24) |
|---|---|
| Batch capacity | 20-25 kg per cycle, depending on part size and material |
| Cycle time | About 45 minutes for zinc alloy sliders with epoxy paint |
| Labor per machine | One operator can run five machines |
| Machine dimensions | 145 x 105 x 180 cm |
| Net weight | 260 kg |
| Voltage | 220 V, 3 PH, 60 Hz, configured for your site on order |
| Total power | 12 kW |
| Heater power | 10.8 kW |
| Maximum temperature | 150 degrees C |
| Recommended working temperature | 95-105 degrees C |
| Drum rotation speed | 0-60 r/min, adjustable |
| Spray gun air pressure | 4-6 atm |
| Drum material | 316 food grade stainless steel punched mesh, 3.0 mm |
| Body material | 2.0 mm cold-rolled steel plate |
| Insulation | Aluminum silicate fiber |
| Power cable | Three-phase five-wire: 3 x 6 mm2 live, 1 x 4 mm2 neutral, 1 x 4 mm2 earth |
| Paints supported | Water-based and resin paints such as epoxy |
| Paint formula reference | Epoxy resin : hardener : thinner = 3 : 1 : 3 |
| Largest part size | Up to 15 cm; sharper edges need confirmation |
| Included accessories | One spray gun, two inner drums |
| Warranty | One year |
Before you order: send photos of your part, your target color and your expected daily output. We confirm the fit and calculate how many drums your volume needs, so you do not buy capacity you will not use.
It paints small parts in bulk, including zinc alloy slider bodies, sliders, buttons and bag hardware. Use these limits as a guide: each part should not exceed 15 cm, edges and corners should not be too sharp, and parts must survive tumbling without being damaged by contact with each other. Send photos of your part and we will confirm before you order.
A batch holds 20-25 kg and takes about 45 minutes, so a single drum runs roughly 10-13 batches in an eight-hour shift. Zinc alloy sliders painted with high-temperature epoxy resin are the reference case. Heavier parts paint faster, lighter parts slower, so ask us to calculate your daily output before you choose the number of drums.
Water-based paints and resin paints such as epoxy paint. Color matching stays with our technicians, because the correct formula depends on your material, target color and gloss level. Once the formula is confirmed, the machine records the whole spraying process so the next batch repeats it.
No. The barrel spray painting machine finishes heating, spraying and curing inside the drum, so parts come out ready to use with no extra drying or baking step. If you also run hand painting lines, those still need a hand painting case, a frame, a gun and an oven.
Different colors need a different inner drum. The inner drums are stainless steel and are cleaned by soaking in sulfuric acid. We supply two inner drums with the machine, and an automatic sand blasting machine is available if you want faster cleaning.
Each machine ships with one spray gun and two inner drums. The warranty is one year. Wear parts and additional drums are available from stock, and our engineers stay available for parameter setting and troubleshooting after installation.
Send us your part photos, target color and daily output. You will get the barrel spray painting machine configuration, the number of drums we recommend, the lead time and the shipping plan.
