PRODUCT DESCRIPTION

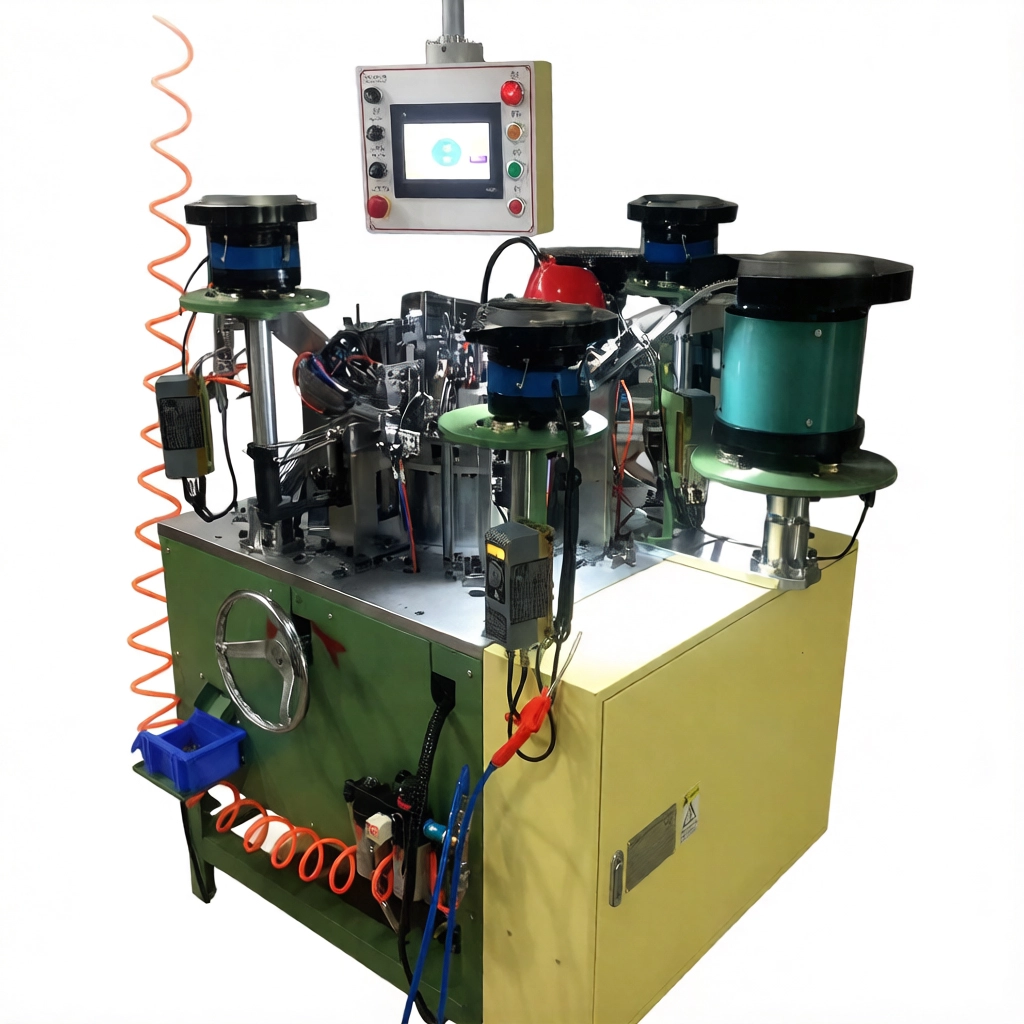

Automatic Invisible Slider Assembly Machine
DIMENSION: L 140*W 140* H 180 CM
MOTOR POWER 1/2HP(0.4kw)
PACKAGING MEAS.: L145*W145*H145 CM（Bracket Bend）
WEIGHT: N.W.:520kgs, G.W.:650kgs
AIR PRESSURE: 5-6 kgs square cm
WORKING AREA: 4 square meters
OPERATOR: 1 operator/machine
Advantages:
1) Average output: 3900 pcs/hour.

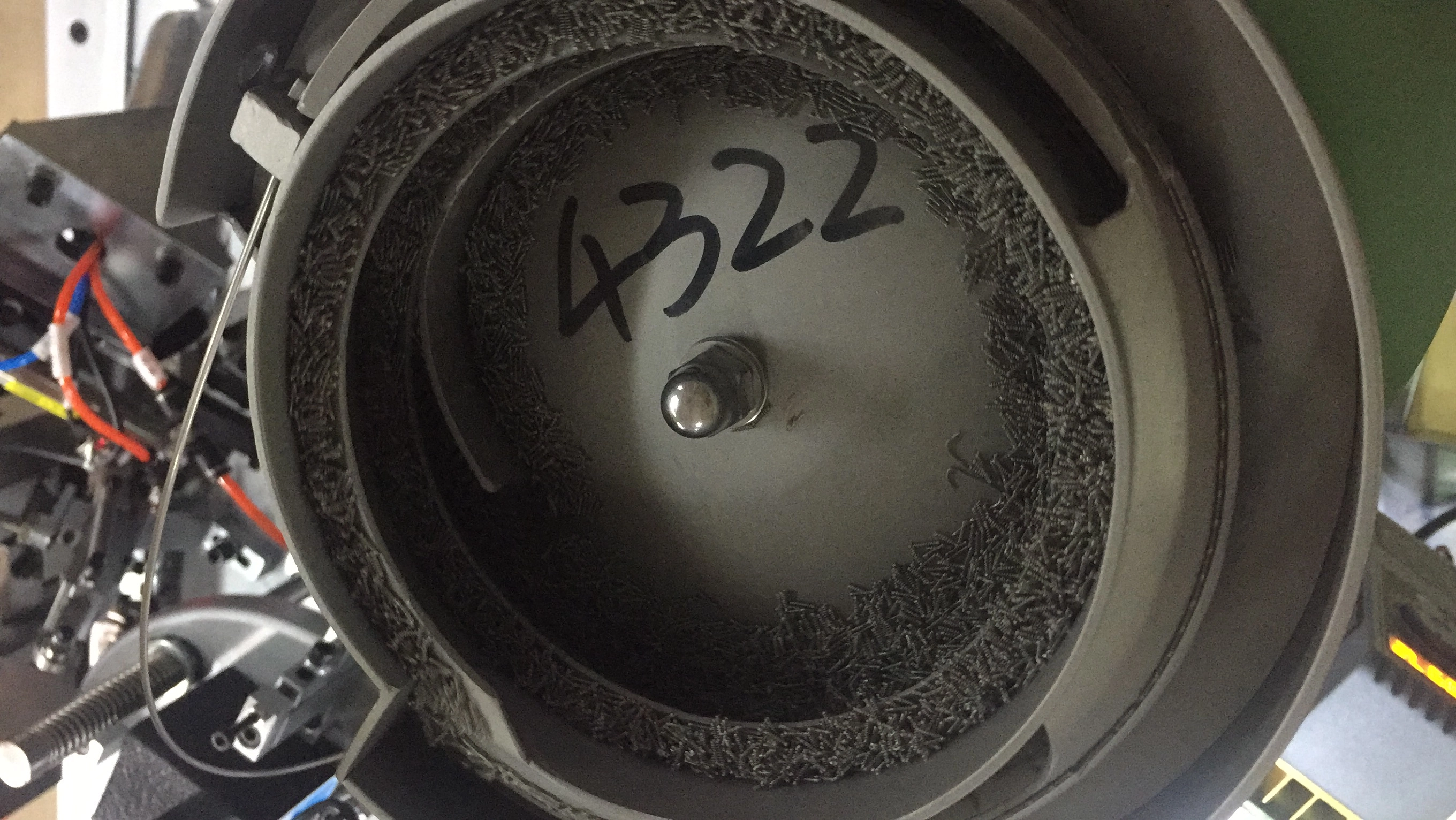

2) Invisible slider accessories are fed from the parts-feeder then auto-assembled on the main disk.
3) Checking devices is made in each step to pick defect assembly parts out before riveting. So that defect rate can be reduced greatly.
4) Machine will stop automatically when unqualified assembly parts detected twice. Machine speed is adjustable.
