Average output is 1200-4800 pcs per hour.
MOQ : 1 set
Lead time : 30 days
Export Packing : plywood packing

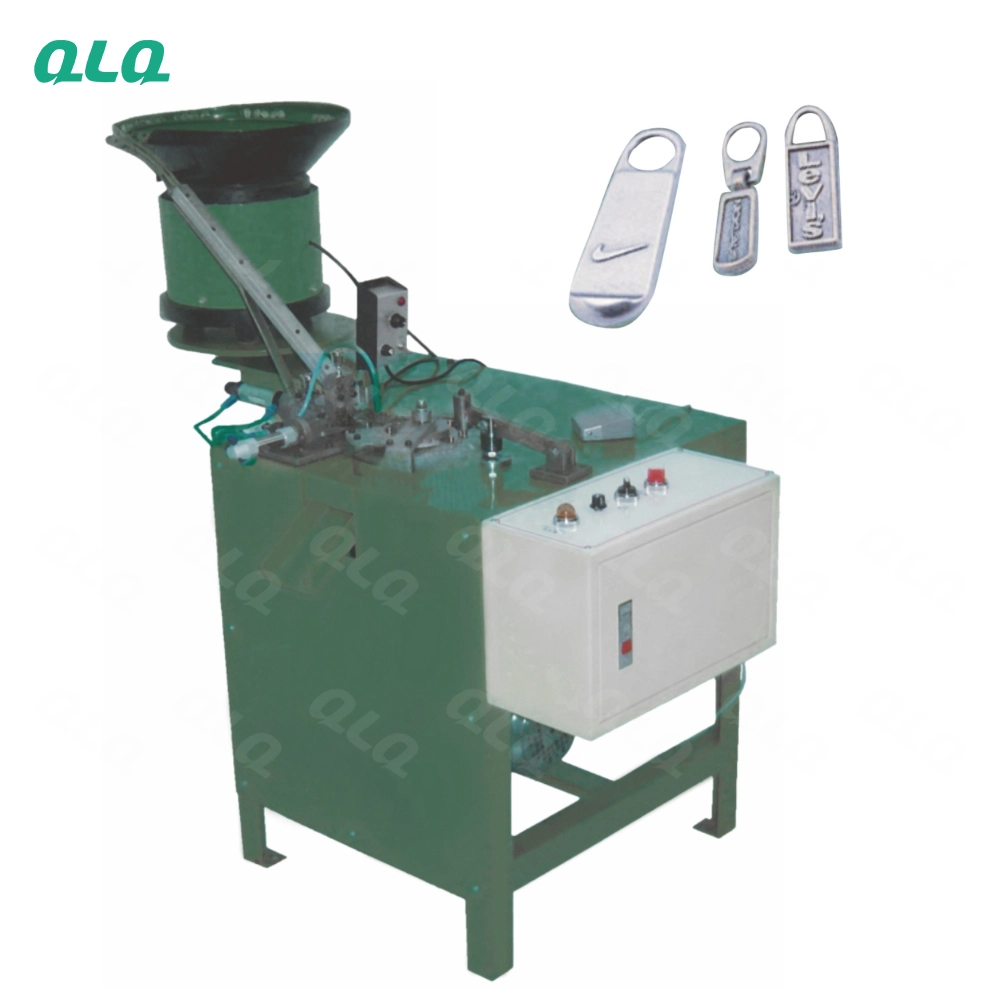

Semi-automatic Non-lock Slider Assembly Machine
DIMENSION L 130*W 80* H 105 CM
MOTOR POWER 1/2HP(0.4kw)
PACKAGING MEAS.: L 135*W 85*H 120 CM
WEIGHT: N.W.:220kgs, G.W.: 320kgs
AIR PRESSURE: 4-5 kgs per square cm
WORKING AREA: 4 square meters
OPERATOR: 1 operator per machine
Advantages:
1) This Automatic Brass Cap Slider and Pin-spring Assembly Machine is our newly designed slider making machine.
2) Semi-auto mode average output:1200-4800 pcs /hr.
3) Slider is fed from the parts-feeder via the guide then automatically through rail into deburr cutter. This machine can assemble any kind of fancy puller.
4) Control the operation of machinery by the foot switch, can adjustment speed.
6) This Automatic Spring-lock YG Slider and Spring Assembly Machine works stably.
7) Technicians are available to offer after-sales service oversea.
