small high pressure 30T hot chamber zamak zinc metal medal belt buckle making die casting mini button machine fully automatic
Generate QR code
-
When You'll Get It:Sep 10 - Sep 14
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
Key attributes
Other attributes
| Machine Type | Hot Chamber Die Casting Machine |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2020 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Place of Origin | Guangdong, China |
| Condition | New |
| Weight (KG) | 500 |
| Warranty | 1 Year |
| Key Selling Points | Automatic |
| Applicable Industries | Energy & Mining, Machinery Repair Shops |
| Showroom Location | Italy |
| Max.Thickness of Die Block (mm) | 100 mm |
| Min.Thickness of Die Block (mm) | 100 mm |
| Ejection Force(kN) | 1 kN |
| Ejection Stroke(mm) | 1 mm |
| Brand Name | QLQ |
| Voltage | 380V |
| Dimension(L*W*H) | 2.1x1.2x2.3m |
| Power (kW) | 2 |
| Product type | Casting Machine |
| Power(W) | 1.6KW |
| Weight | 800Kg |
| After-sales Service Provided | Online support |
| After Warranty Service | Online support |
Packaging and delivery
| Packaging Details | Standard export packing |
Product Specification

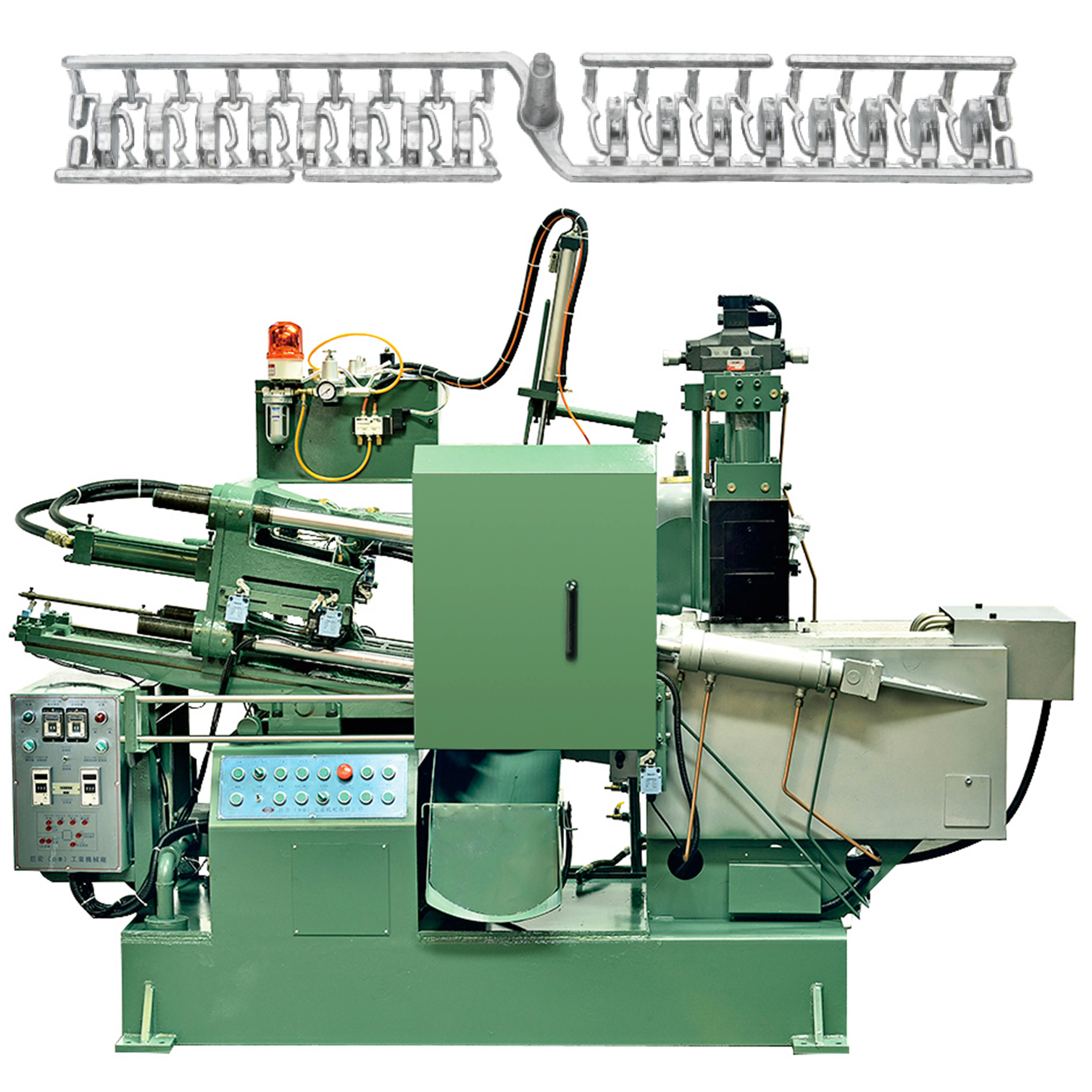

30T Automatic Hot Chamber Die Casting Machine
Main technical data
|
project
|
Unit
|
30T
|
|
The locking pressure
|
The locking pressure
|
KN
|
|
The current capacity of the oil pump
|
The current capacity of the oil pump
|
L
|
|
The capacity of oil tank
|
The capacity of oil tank
|
L
|
|
The nominal pressure
|
The nominal pressure
|
Kg/cm2
|
|
The energy accumulator
|
L-number
|
20L
|
|
Energy accumulator
|
kw
|
7.5HP(10HP)
|
|
The size of the inner pillar(mold installed size)
|
mm
|
275*275
|
|
The mould-opening stroke
|
mm
|
200
|
|
The thickness of the mould(min-max)
|
mm
|
130-280
|
|
The tiebar diameter
|
mm
|
Φ50
|
|
The injecting force
|
KN
|
36
|
|
The injecting stroke
|
mm
|
100
|
|
The injecting rod diameter
|
mm
|
Φ45
|
|
The ejection location
|
mm
|
40
|
|
The die-casting quantity(reality)
|
g
|
60-350
|
|
The injection location
|
mm
|
0
|
|
The capacity of the melting pot(zinc)
|
kg
|
150
|
|
The center distance of front mold screw
|
mm
|
120
|
Our Advantages
1.With computer controlled system, this die casting machine can store many mould number and also has the fuction of memeory.
2. Adopting computer control for automatic mould adjustment, the machine is easy to operate, which can achieve precision die casting position.
3. The die casting machine is suitable for die casting of non-ferrous metal such as aluminum, zinc and copper.
4. Energy saving with competitive price, which helps you save the cost.
5.Stable performance with stable system, 24 hours continuous running is possible.
6.Satisfied after-sales service.
2. Adopting computer control for automatic mould adjustment, the machine is easy to operate, which can achieve precision die casting position.
3. The die casting machine is suitable for die casting of non-ferrous metal such as aluminum, zinc and copper.
4. Energy saving with competitive price, which helps you save the cost.
5.Stable performance with stable system, 24 hours continuous running is possible.
6.Satisfied after-sales service.
Packing & Delivery
After sales service
Company Profile
FAQ
1. Should I choose how many ton die casting machine?
QLQ: It depens on your products. For example, if you want to make non-lock slider, we suggest to choose 25ton. And if you want to make auto-lock slider, we suggest to choose 15ton.
2. What is the heating way of your die casting machine?
QLQ: We can make electrical heating, natural gas heating or diesel oil heating. You can choose it as per your requirement.
3. I want to buy spare parts of die casting machine, can you offer to me?
QLQ: Sure. Which spare parts do you need? And what is the brand and capacity of your die casting machine? It is better that you can send the name plate of your machine directly.
4. What product can be made on this machine?
QLQ: This machine can make all types of slider body, cap, puller, and other zinc alloy products like pin, box and stoppers.
