QLQ slider-cap molding zipper slider accessories diecasting zipper slider cap mould die-casting zipper stop mold
Generate QR code
-
When You'll Get It:Sep 10 - Sep 14
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
Key attributes
Other attributes
| Place of Origin | Guangdong, China |
| Brand Name | QLQ |
| Model Number | Cap Mould |
| Product Material | FDAC, DAC |
| Product | slider body mould |
| Product Name | Die Casting Mold |
| Drawing Format | CAD |
| Mould material | FDAC |
| Usage | SLIDER |
Packaging and delivery
| Packaging Details | Standard export paking. |
| Selling Units: | Single item |
| Single package size: | [Insert single package size here] |
| Single gross weight: | [Insert single gross weight here] |
Supply Ability
| Supply Ability | 100 Set/Sets per Month |
Industry-specific attributes
Shaping Mode
Die Casting
Specification
|
Item
|
Slider cap die casting mould
|
|
Cavities
|
24pcs/mould.
It's customized according to your die casting machine and products.
|
|
Material
|
Die steel, DAC / FDAC
|
|
Dimension
|
It's customized according to your die casting machine and products.
|
|
Weight
|
around 20kgs
|
|
Service life
|
more than 1,000,000 moulds
|
|
Advantage
|
1. Our moulds are made by quality die steel material, DAC and FDAC, which are imported from Japan and Taiwan directly.
2. With an experienced master team, which has been in the mould field for more than 15 years, we will design the mould according to your machine and required output, to improve your production capacity and keep the die casting quality.
3. All the moulds will be tested for more than 500 moulds to assure customers can use it directly under smooth situation when they receive moulds.
4. With precise moving cores, our moulds can make products without burr.
5. We can control the precision within 0.02mm.
|
Product Description

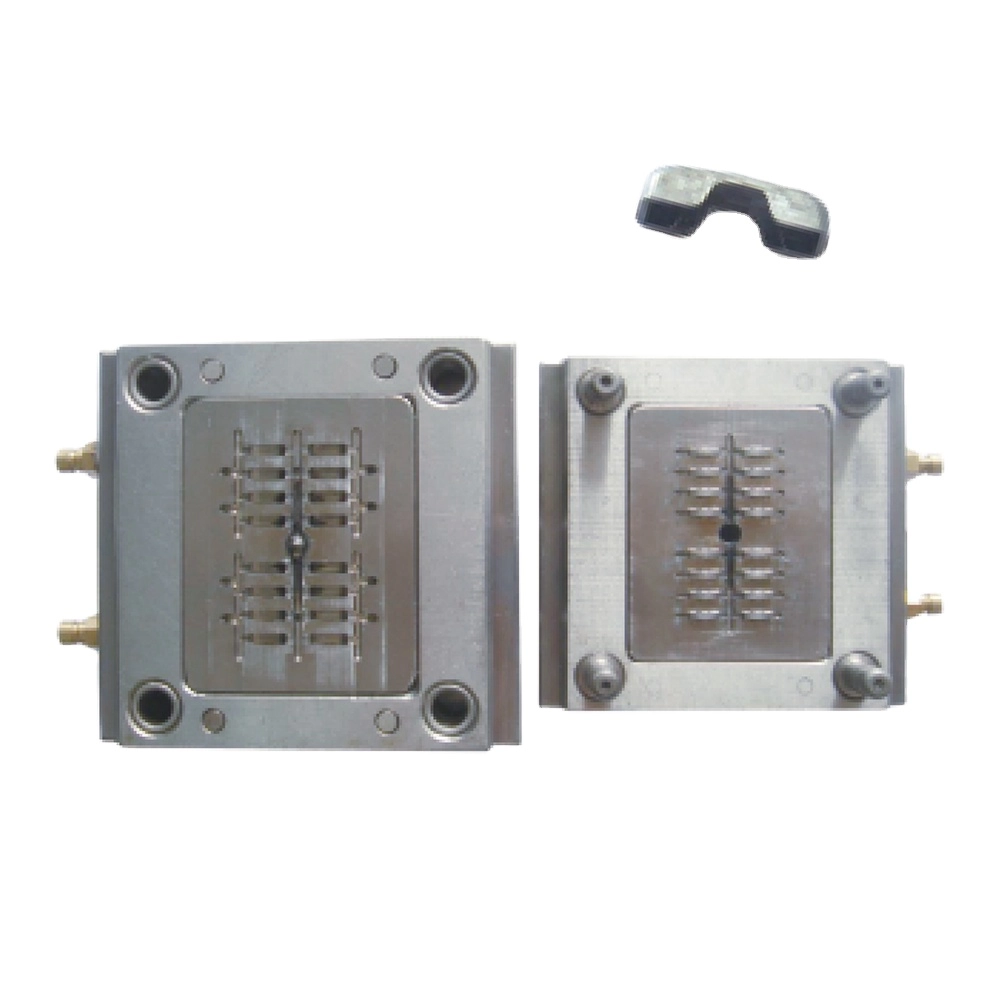

--Side view of the upper part and lower part.
--The mould dimension would be designed according to your product and machine.

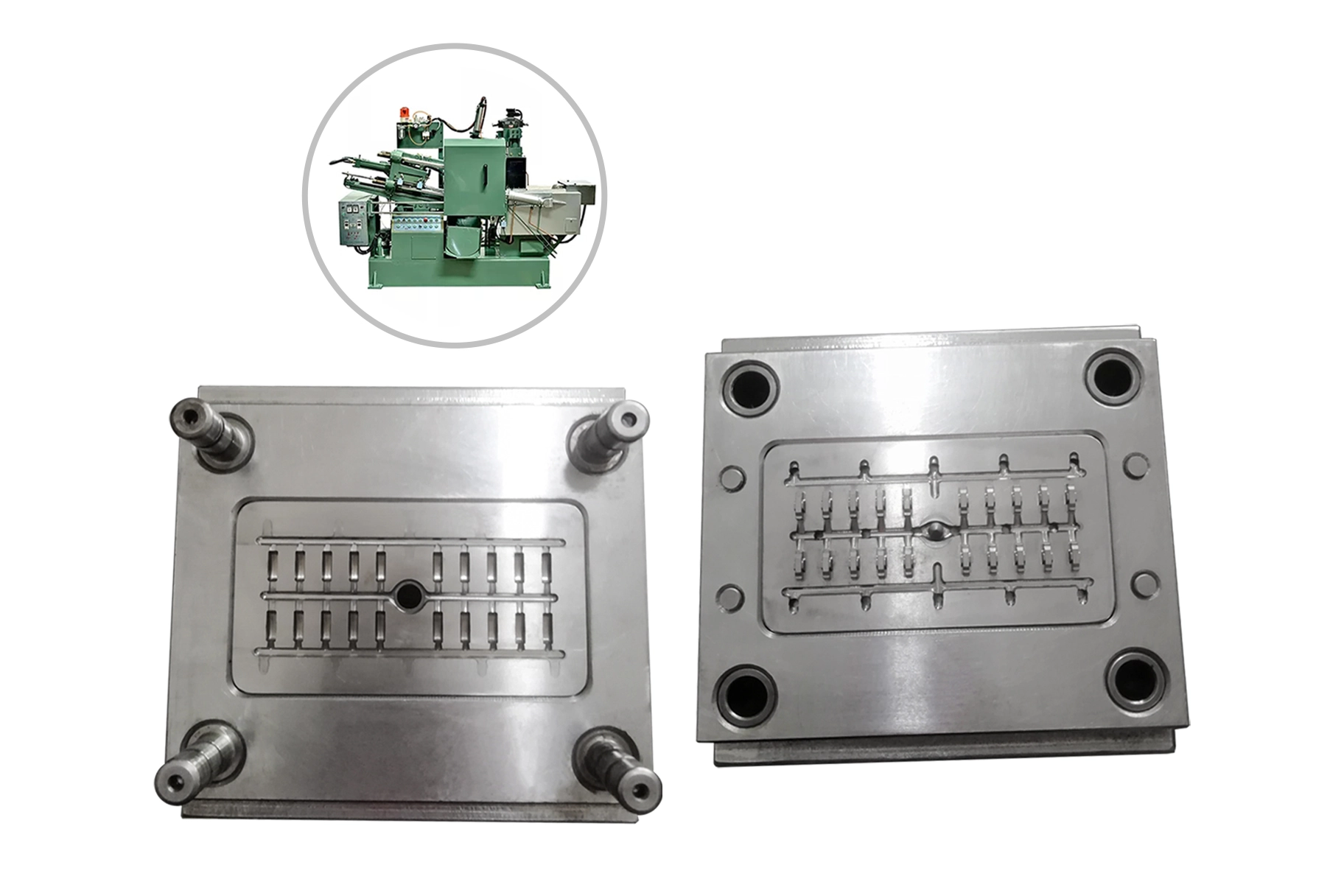

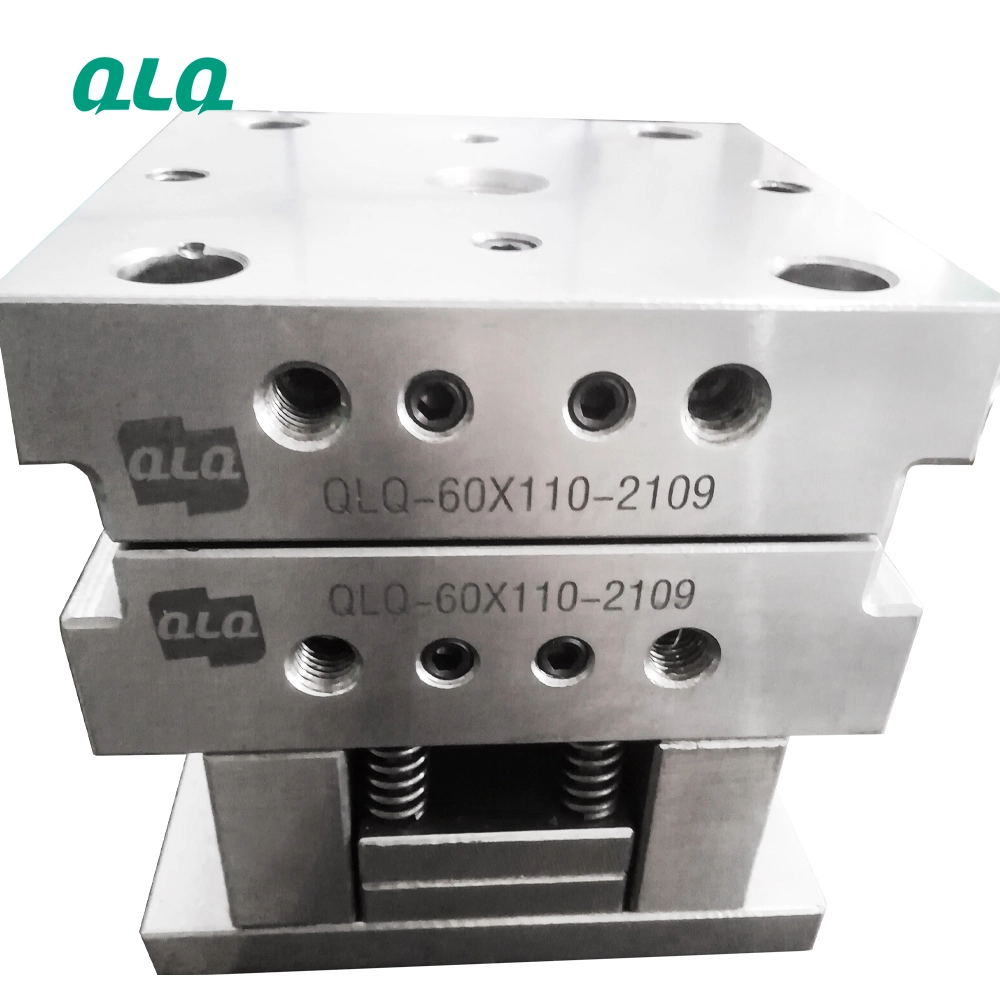

--Slider box die casting mould set.
--Including the mould frame, insert and moving core.
--The mould testing sample.
--Mould testing is our standard process. There are very less burrs on the product frame.
--To assure it is 100% workable before delivery, it would be tested at least 500 moulds.

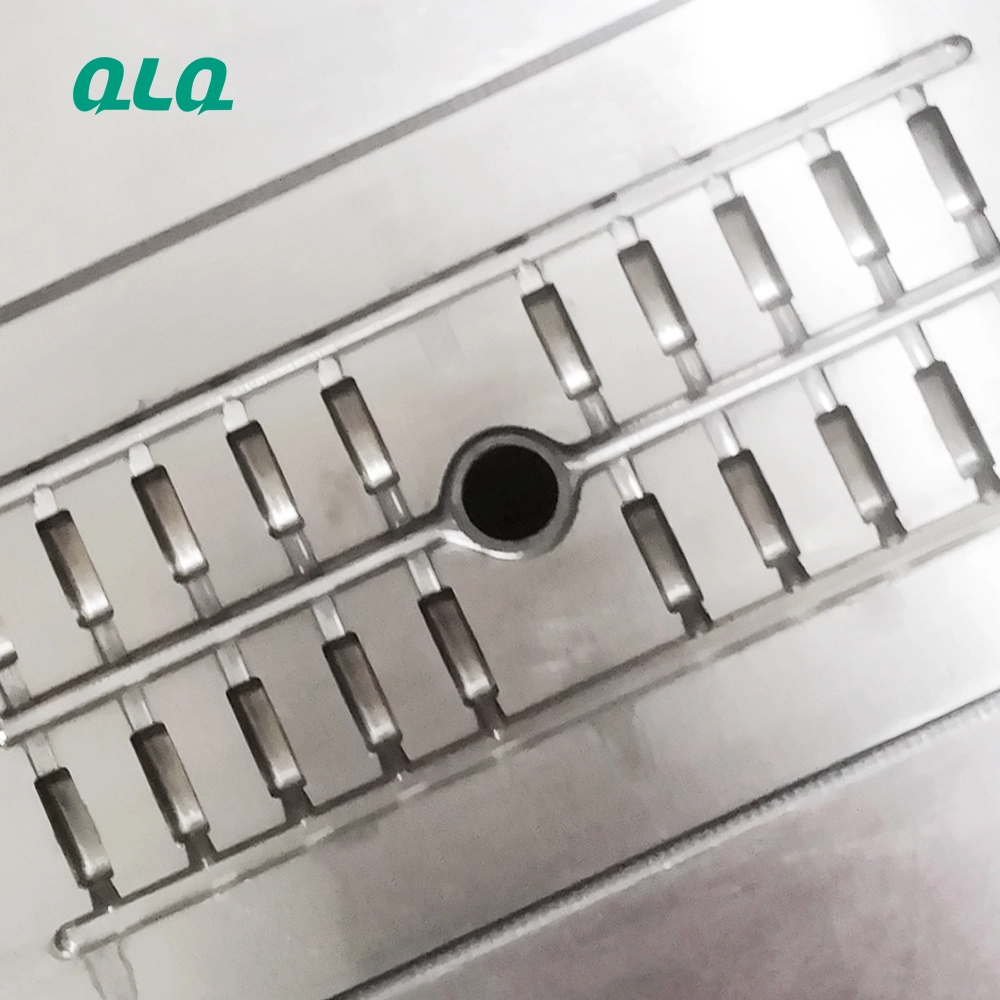

--Clean and neat ways.
--Moulds are polished by the experienced worker manually to make each way smooth.

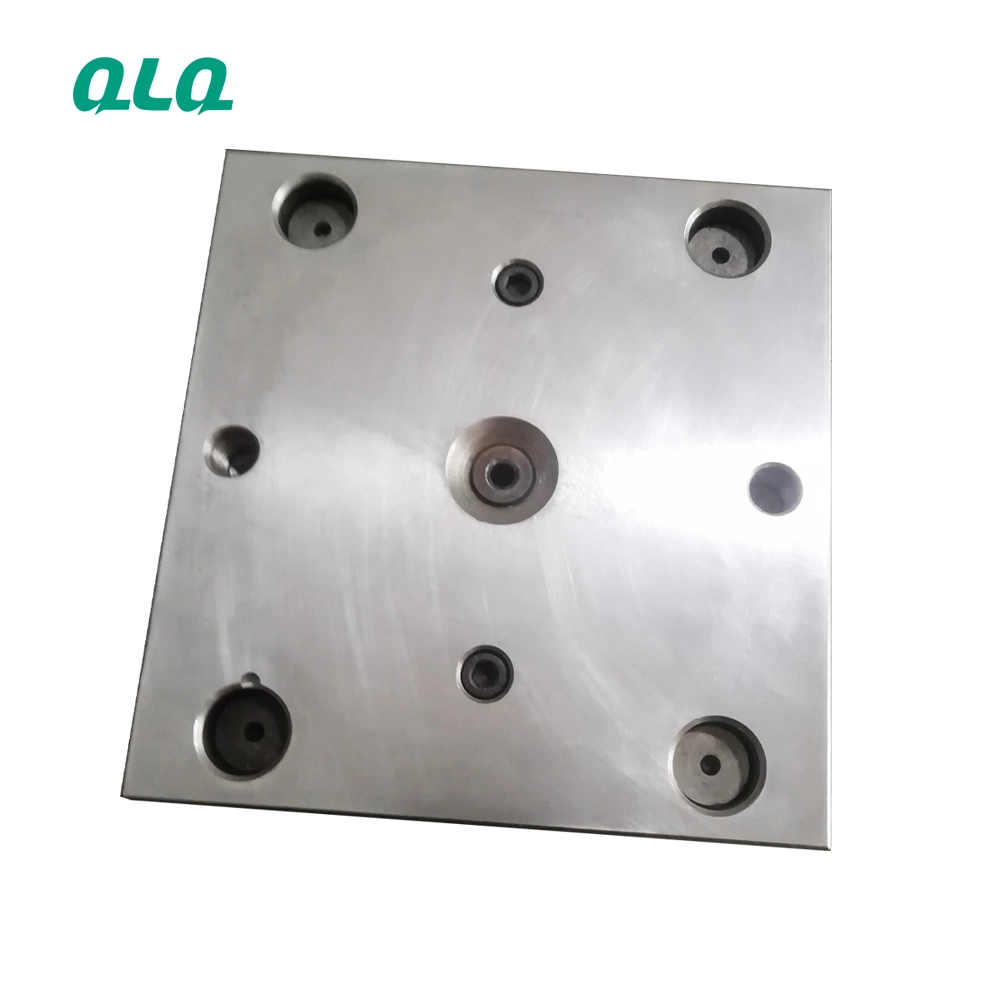

--High precision.
--The precision error of our moulds could be ±0.02mm.

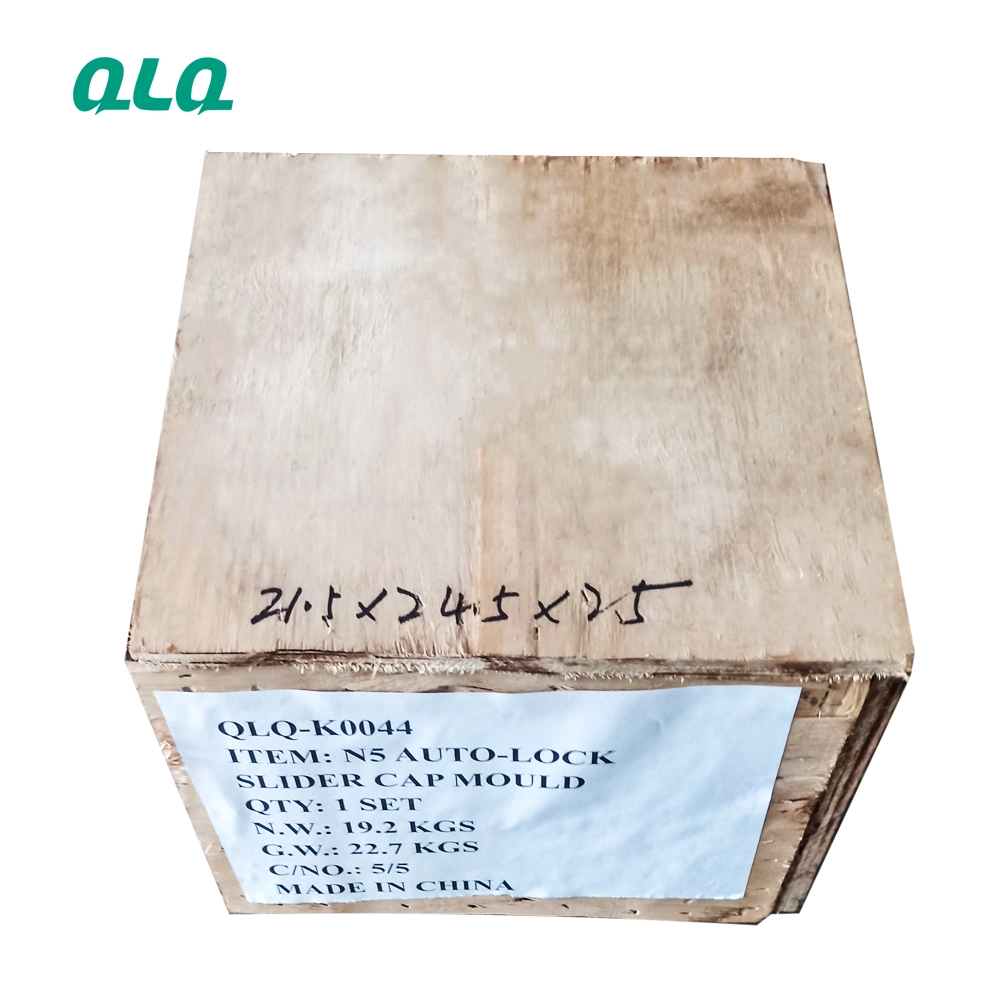

Packing & Delivery
Export standard packing.
--Mould frames are always packed by wooden box.
--Mould inserts are always packed by bubble bag before being packed in the carton. When the quantity is less than 3, we will use carton for packing. When it's more than 3, we will use wooden box instead.
Company Profile
Contact us
Facebook
YouTube
WeChat
FAQ
1. Do you sell spare parts for die casting mould?
QLQ: Yes, normally the spare parts for die casting mould we have mould insert, mould frame, window core, moving core, head of nozzle. You can check and inform what spare parts you need.
2.What is your mold insert made of?
QLQ: Our mold insert is made of DAC.
3. What is your moving core made of?
QLQ: Our moving core is made of FDAC.
4. What is the tolerance of your moving cores?
QLQ: The grinding dimension tolerance of each mold core is 0.02mm and the engraving dimension tolerance is 0.02mm, so that we can ensure that the product size does not have any serious size deviation.
QLQ: Yes, normally the spare parts for die casting mould we have mould insert, mould frame, window core, moving core, head of nozzle. You can check and inform what spare parts you need.
2.What is your mold insert made of?
QLQ: Our mold insert is made of DAC.
3. What is your moving core made of?
QLQ: Our moving core is made of FDAC.
4. What is the tolerance of your moving cores?
QLQ: The grinding dimension tolerance of each mold core is 0.02mm and the engraving dimension tolerance is 0.02mm, so that we can ensure that the product size does not have any serious size deviation.
