Hot chamber Die Casting Machinery 68T High Pressure Buckle Hook Zinc Diesel Burner for Die Casting Machine Cut Pipe for Slider
Generate QR code
-
When You'll Get It:Sep 10 - Sep 14
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
Key attributes
Other attributes
| Machine Type | Hot Chamber Die Casting Machine |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2022 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Place of Origin | Guangdong, China |
| Condition | New |
| Weight (KG) | 3400 |
| Warranty | 1 Year |
| Key Selling Points | high quality |
| Applicable Industries | Energy & Mining, Machinery Repair Shops, Manufacturing Plant, Zipper Factory, Zipper Slider Factory |
| Showroom Location | Turkey |
| Max.Thickness of Die Block (mm) | 565 mm |
| Min.Thickness of Die Block (mm) | 500 mm |
| Ejection Force(kN) | 45 kN |
| Ejection Stroke(mm) | 45 mm |
| Brand Name | QLQ |
| Dimension(L*W*H) | 3150*1500*2050 mm |
Packaging and delivery
| Selling Units | Single item |
| Single package size | 355X190X245 cm |
| Single gross weight | 3900.000 kg |
Product Specification

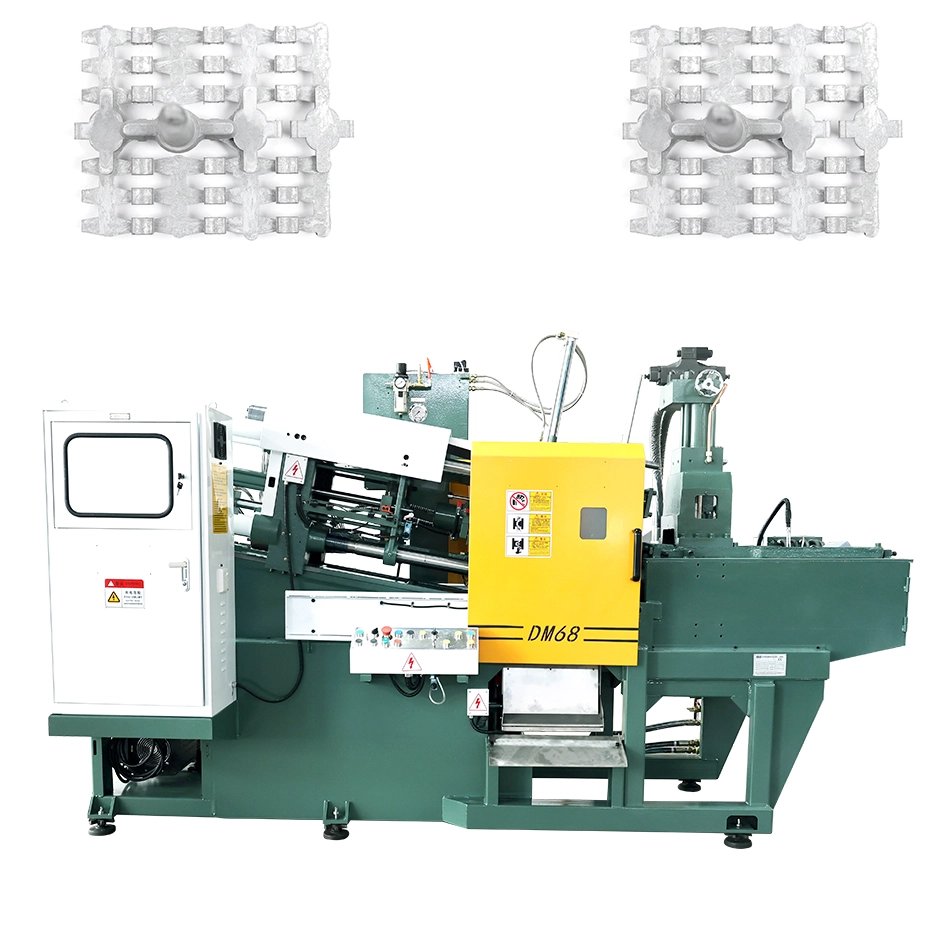

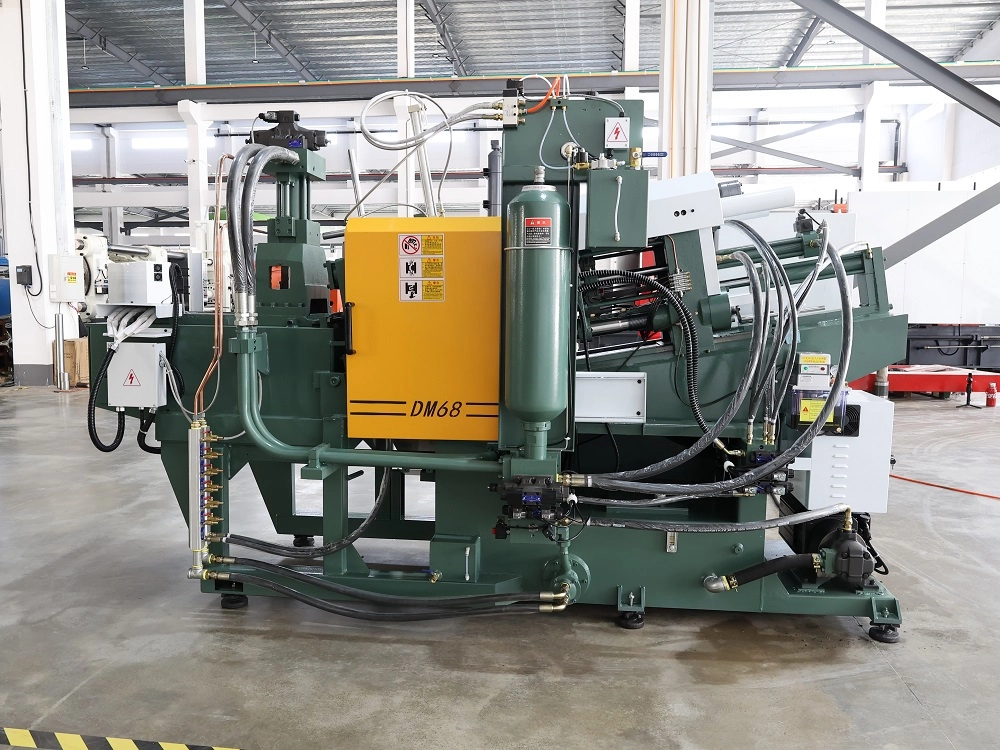

Hot Chamber Die Casting Machine (68Ton)
|
Parameter table of die casting machine (hot chamber)
|
|
|
|
|||
|
Configuration item
|
Parameter
|
Configuration item
|
Parameter
|
|||
|
Clamp force
|
680 KN
|
Punch diameter
|
45 mm
|
|||
|
Clamping stroke
|
215 mm
|
Weight of shot materiasl/Zn
|
0.9 Kg
|
|||
|
Ejecting force
|
45 KN
|
Capacity of crucible/Zn
|
480 Kg/Zn
|
|||
|
Ejection stroke
|
45 mm
|
Motor power
|
7.58 KW
|
|||
|
Mold thickness
|
120-330 mm
|
System working pressure
|
8.5 MPa
|
|||
|
Platen Size(WxH)
|
565*500 mm
|
Furnace(oil)
|
3.5 Kg/h
|
|||
|
The diameter of Tiebar
|
63 mm
|
Electric furnace
|
18 Kw
|
|||
|
Force of shot material
|
55 KN
|
Oil tank volume
|
200 L
|
|||
|
Position of shot material
|
0 mm
|
Shot nozzle heating power
|
2 Kw
|
|||
|
Stroke far from nozzle
|
0-330/270 mm
|
Size of material cup bodyshape (L*W*H)
|
3300*1580*2060 mm
|
|||
|
Stroke of shot material
|
110 mm
|
Size of material pot bodyshape (L*W*H)
|
3150*1580*2060 mm
|
|||

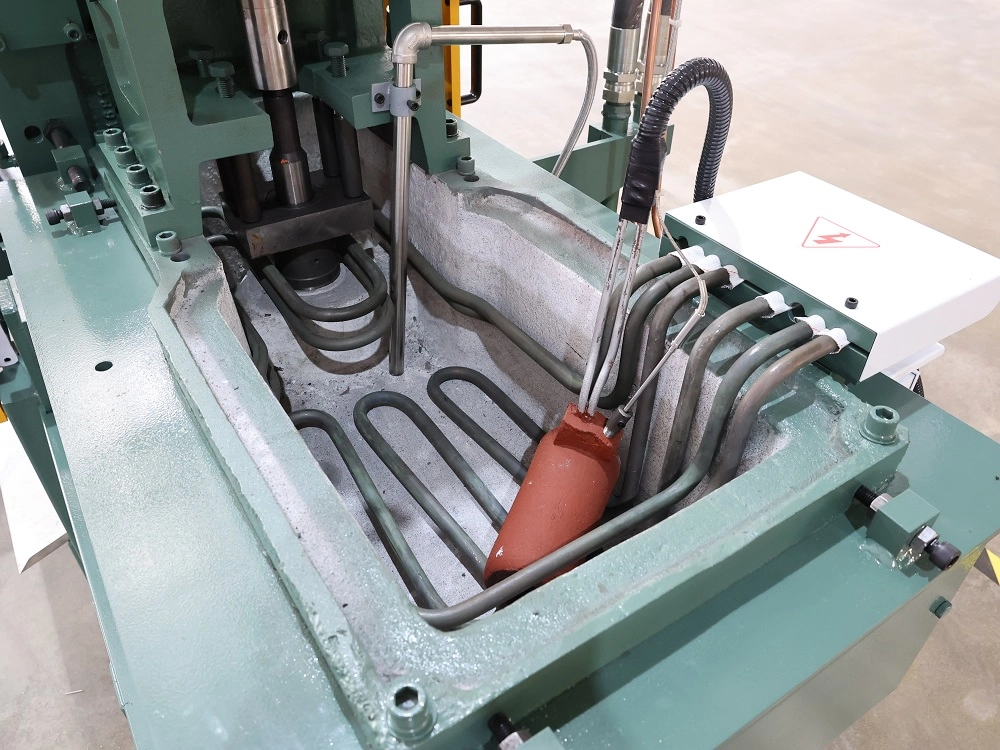

Light Wave Stove
1- The light wave stove will be equipped with a separate electrical box2- The light wave oven is heated by infrared ray. Inside it has stainless steel tube which has protective cover outside, so that the heating tube will not burn the material directly and then save 15% of the electricity consumption, moreover, the tube will be durable and the cost will be relatively high.Summary: either the material cup model or material pot model can produce such bag accessories as slider, puller, dog hook, tri-glide buckle. But the pot model injects more materials than the cup model, so we prefer the pot model to the cup model in making heavy products including heavy slider, heavy dog hook. If you want to make light product and your technician is familiar with the cup model, you can buy the cup model.
Why Choose Us
1. This machine with fast speed, high efficiency, good pressure and strong stability.
2. Zinc alloy products are widely used in electronic technology, zippers, luggage accessories, furniture harware and so on.

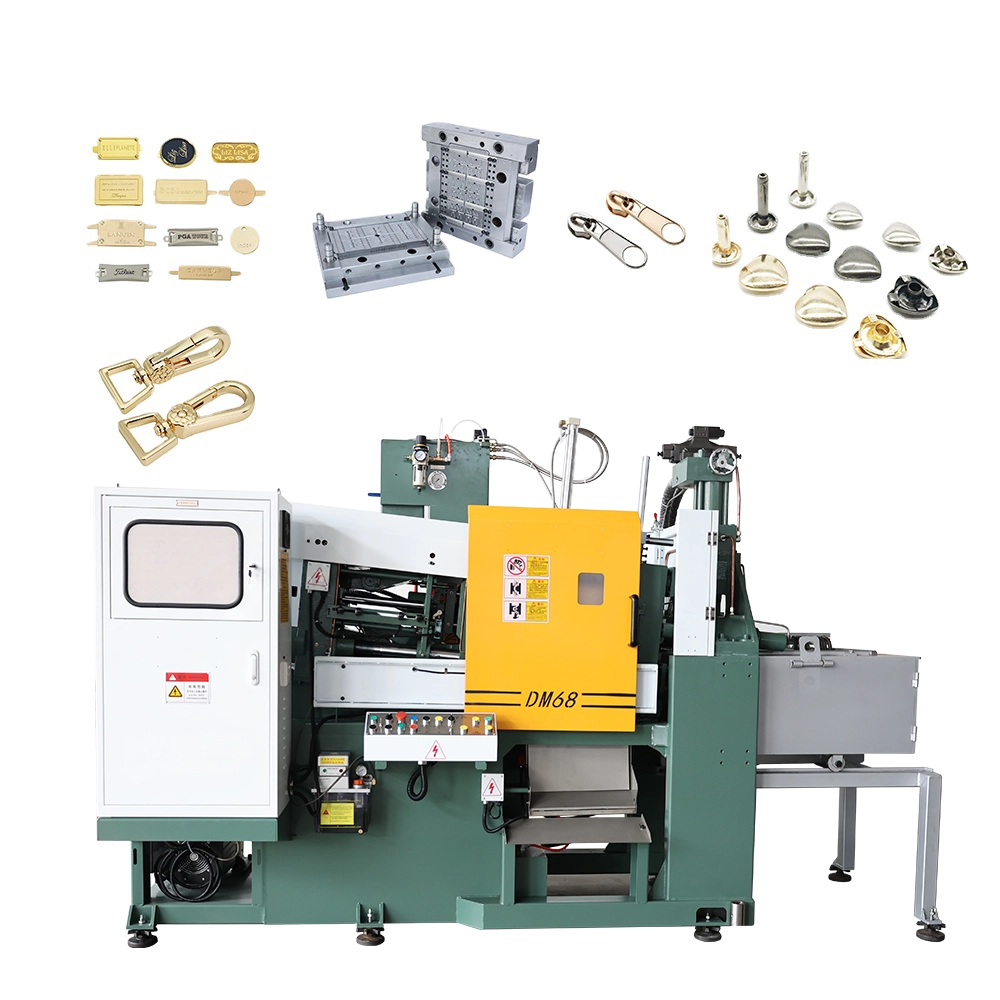

Finished Product
Packing & Delivery
QLQ After-sales Service Type
1) Training
QLQ after-sales team training customer's technicians how to use our machine in their factory.
2) Reference Videos
We can offer many useful videos to teach customer's technician how to use our machine well. We will also provide inspection report before shipment.
3) High Approval of Our Machines
Customers can come to our factory to learn how to make the high quality products on our machines.

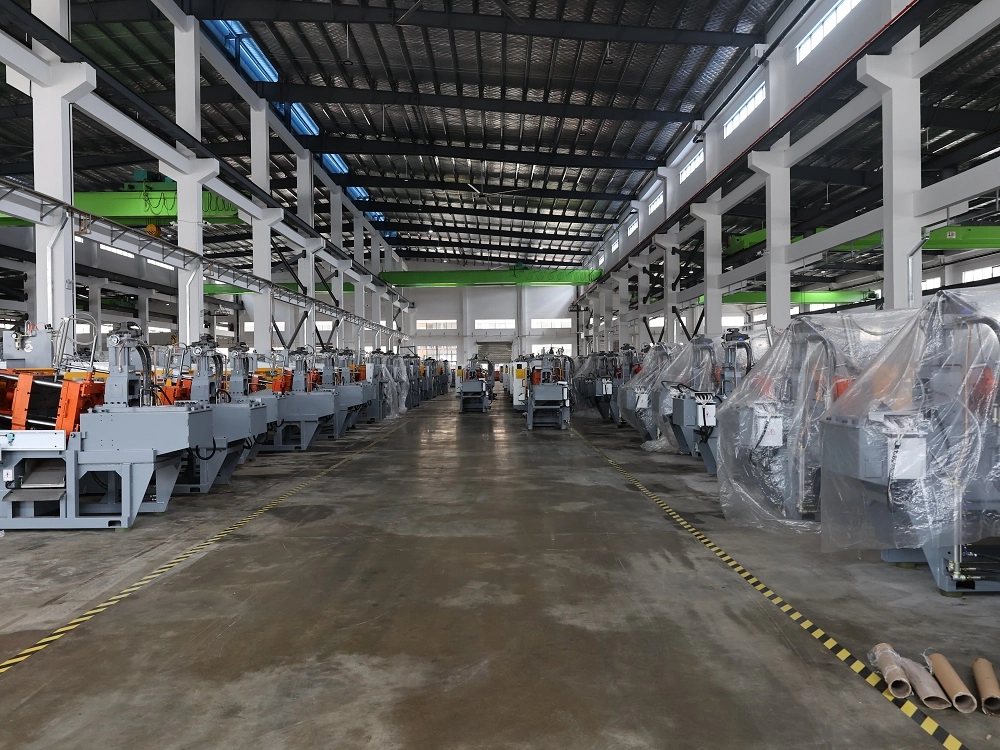

Company Profile
FAQ
1. Should I choose how many ton die casting machine?
QLQ: It depens on your products. For example, if your products is big or you want to made the products for more at once time, you can choose more high tons hot chamber die casting machine.
2. What is the heating way of your die casting machine?
QLQ: We can make electrical heating, natural gas heating or diesel oil heating. You can choose it as per your requirement.
3. I want to buy spare parts of die casting machine, can you offer to me?
QLQ: Sure. Which spare parts do you need? And what is the brand and capacity of your die casting machine? It is better that you can send the name plate of your machine directly.
4. What product can be made on this machine?
QLQ: This machine can make all types of slider body, cap, puller, and other zinc alloy products like pin, box and stoppers.
