Hot Chamber 38T 25t Zinc Zipper Slider Die Casting Press Machine price for Hardware Hook button Metal Badge die-casting machine
Generate QR code
-
When You'll Get It:Sep 10 - Sep 14
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
Key attributes
Other attributes
| Machine Type | Hot Chamber Die Casting Machine |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2022 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Place of Origin | Guangdong, China |
| Condition | New |
| Weight (KG) | 2000 |
| Warranty | 1 Year |
| Key Selling Points | High Productivity |
| Applicable Industries | Energy & Mining, Machinery Repair Shops, Manufacturing Plant, Zipper Factory, Zipper Slider Factory |
| Showroom Location | Turkey |
| Max.Thickness of Die Block (mm) | 300 mm |
| Min.Thickness of Die Block (mm) | 120 mm |
| Ejection Force(kN) | 40 kN |
| Ejection Stroke(mm) | 45 mm |
| Brand Name | QLQ |
| Dimension(L*W*H) | 3100*1500*2000 (mm) |
| Year | 2022 |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: | 310X150X250 cm |
| Single gross weight: | 2500.000 kg |
Supply Ability
| Supply Ability | 100 Set/Sets per Month |

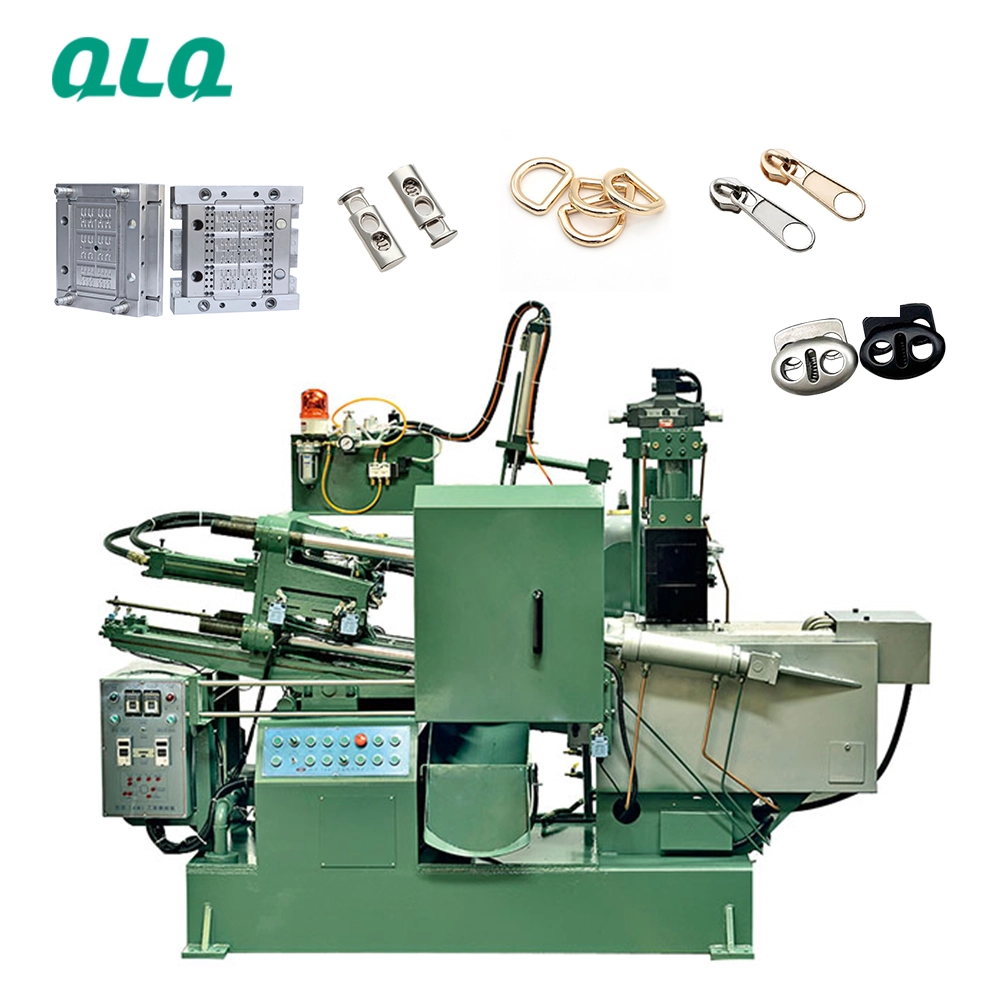

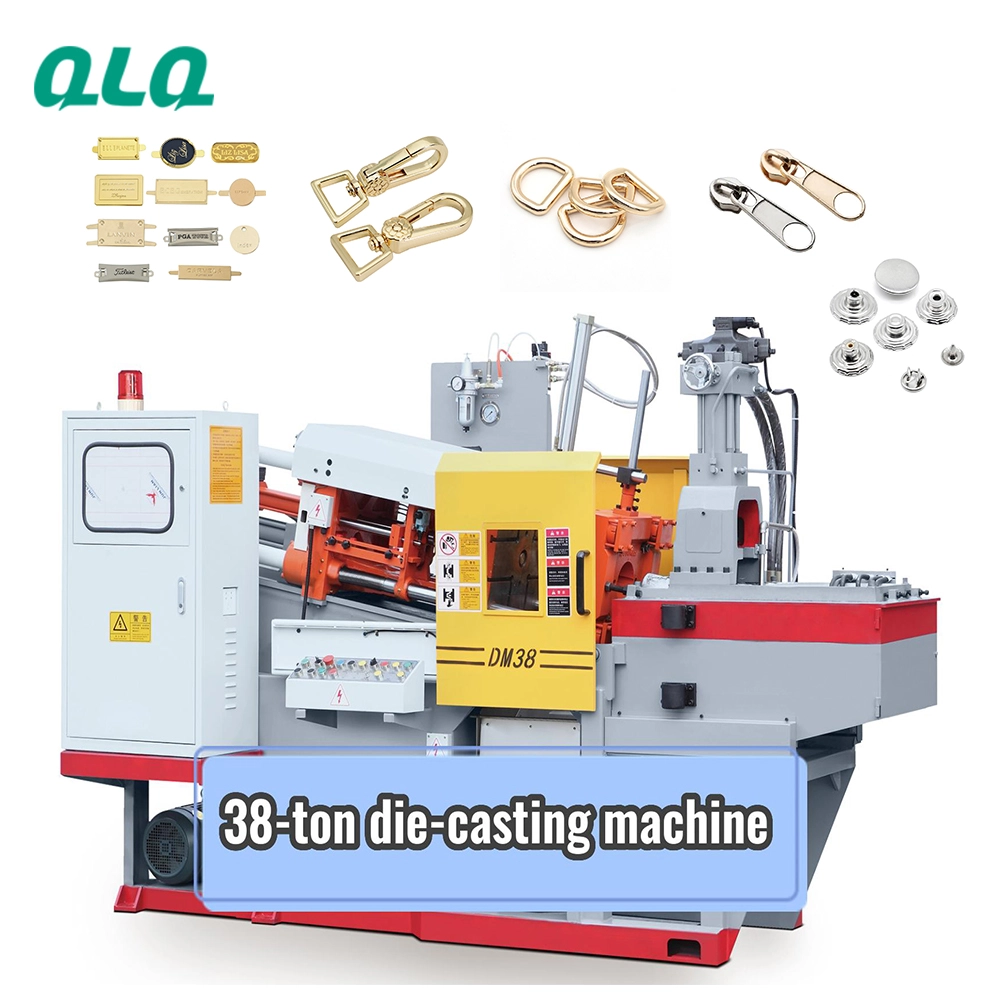

38T Hot Chamber Die Casting Machine
Good price, good technical support, buy it from QLQ.
Product Specification
|
Parameter table of die casting machine (hot chamber)
|
|
|
|
|||
|
Configuration item
|
Parameter
|
Configuration item
|
Parameter
|
|||
|
Clamp force
|
380 KN
|
Punch diameter
|
42 mm
|
|||
|
Clamping stroke
|
190 mm
|
Weight of shot materiasl/Zn
|
0.7 Kg
|
|||
|
Ejecting force
|
40 KN
|
Capacity of crucible/Zn
|
360 Kg/Zn
|
|||
|
Ejection stroke
|
45 mm
|
Motor power
|
7.58 KW
|
|||
|
Mold thickness
|
120-300 mm
|
System working pressure
|
8.5 MPa
|
|||
|
Platen Size(WxH)
|
450*430 mm
|
Furnace(oil)
|
3.5 Kg/h
|
|||
|
Tiebar spacing(WxH)
|
300*280 mm
|
Electric furnace
|
18 Kw
|
|||
|
The diameter of Tiebar
|
50 mm
|
Oil tank volume
|
200 L
|
|||
|
Position of shot material
|
0 mm
|
Shot nozzle heating power
|
1.5 Kw
|
|||
|
Force of shot material
|
55 KN
|
Size of material cup bodyshape (L*W*H)
|
2980*1450*1920 mm
|
|||
|
Stroke of shot material
|
105 mm
|
Size of material pot bodyshape (L*W*H)
|
3120*1530*2000 mm
|
|||
|
Stroke far from nozzle
|
0-330/270 mm
|
|
|
|||
-- Fast speed, high efficiency, good pressure and strong stability.
-- Zinc alloy products are widely used in electronic technology, zippers, luggage accessories, furniture harware and so on.
Packing & Delivery
QLQ After-sales Service Type
1) Training
QLQ after-sales team training customer's technicians how to use our machine in their factory.
2) Reference Videos
We can offer many useful videos to teach customer's technician how to use our machine well. We will also provide inspection report before shipment.
3) High Approval of Our Machines
Customers can come to our factory to learn how to make the high quality products on our machines.
Company Profile
Contact Us
FAQ
1. Should I choose how many ton die casting machine?
QLQ: It depens on your products. For example, if your products is big or you want to made the products for more at once time, you can choose this 38T hot chamber die casting machine.
2. What is the heating way of your die casting machine?
QLQ: We can make electrical heating, natural gas heating or diesel oil heating. You can choose it as per your requirement.

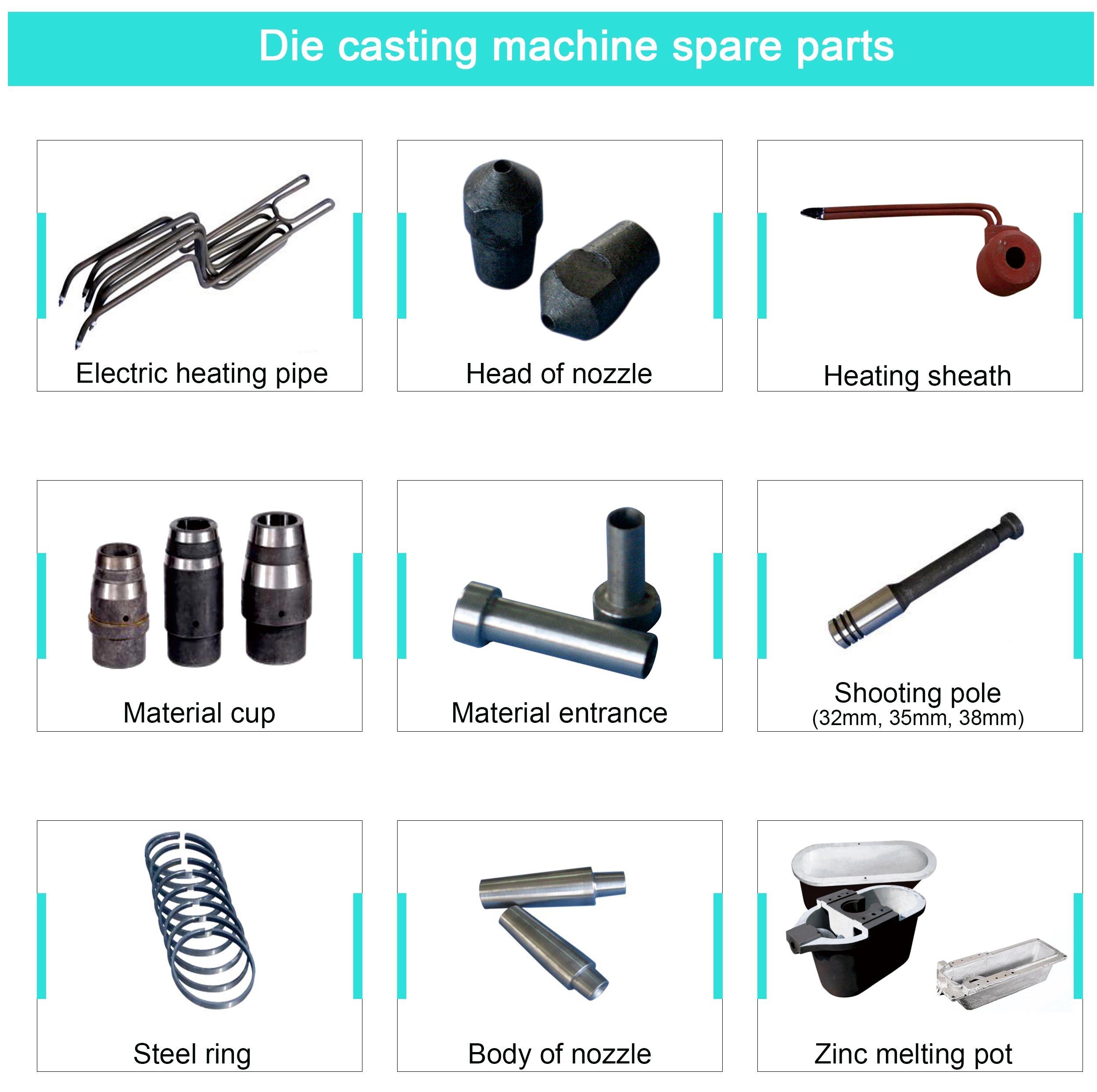

3. I want to buy spare parts of die casting machine, can you offer to me?
QLQ: Sure. Which spare parts do you need? And what is the brand and capacity of your die casting machine? It is better that you can send the name plate of your machine directly.
4. What product can be made on this machine?
QLQ: This machine can make all types of slider body, cap, puller, and other zinc alloy products like pin, box and stoppers.
