High Quality Mold for Mazak Gravity Cast Iron Metal Medal Making Machine Zinc Alloy Die Casting Machine Shell Control Cable Pump
Generate QR code
-
When You'll Get It:Sep 10 - Sep 14
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract. Free shipping on orders over $10,000. For bulk buys, get a personal support rep and quick reimbursement if anything's defective.
Product description
Shipping & Return
Key attributes
Other attributes
| Machine Type | Hot Chamber Die Casting Machine |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | New Product 2020 |
| Warranty of core components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump |
| Place of Origin | Guangdong, China |
| Condition | New |
| Weight (KG) | 500 |
| Warranty | 1 Year |
| Key Selling Points | Automatic |
| Applicable Industries | Energy & Mining, Machinery Repair Shops |
| Showroom Location | Italy |
| Max.Thickness of Die Block (mm) | 100 mm |
| Min.Thickness of Die Block (mm) | 100 mm |
| Ejection Force(kN) | 1 kN |
| Ejection Stroke(mm) | 1 mm |
| Brand Name | QLQ |
| Voltage | 380V |
| Dimension(L*W*H) | 2.1x1.2x2.3m |
| Power (kW) | 2 |
| Product type | Casting Machine |
| Power(W) | 1.6KW |
| Weight | 800Kg |
| After-sales Service Provided | Online support |
Packaging and delivery
| Packaging Details | Standard export packing |
|
Project
|
Unit
|
30T
|
|
The locking pressure
|
KN
|
30Ton
|
|
The current capacity of the oil pump
|
L
|
RV2R2-53
|
|
The capacity of oil tank
|
L
|
350
|
|
The nominal pressure
|
Kg/cm2
|
80
|
|

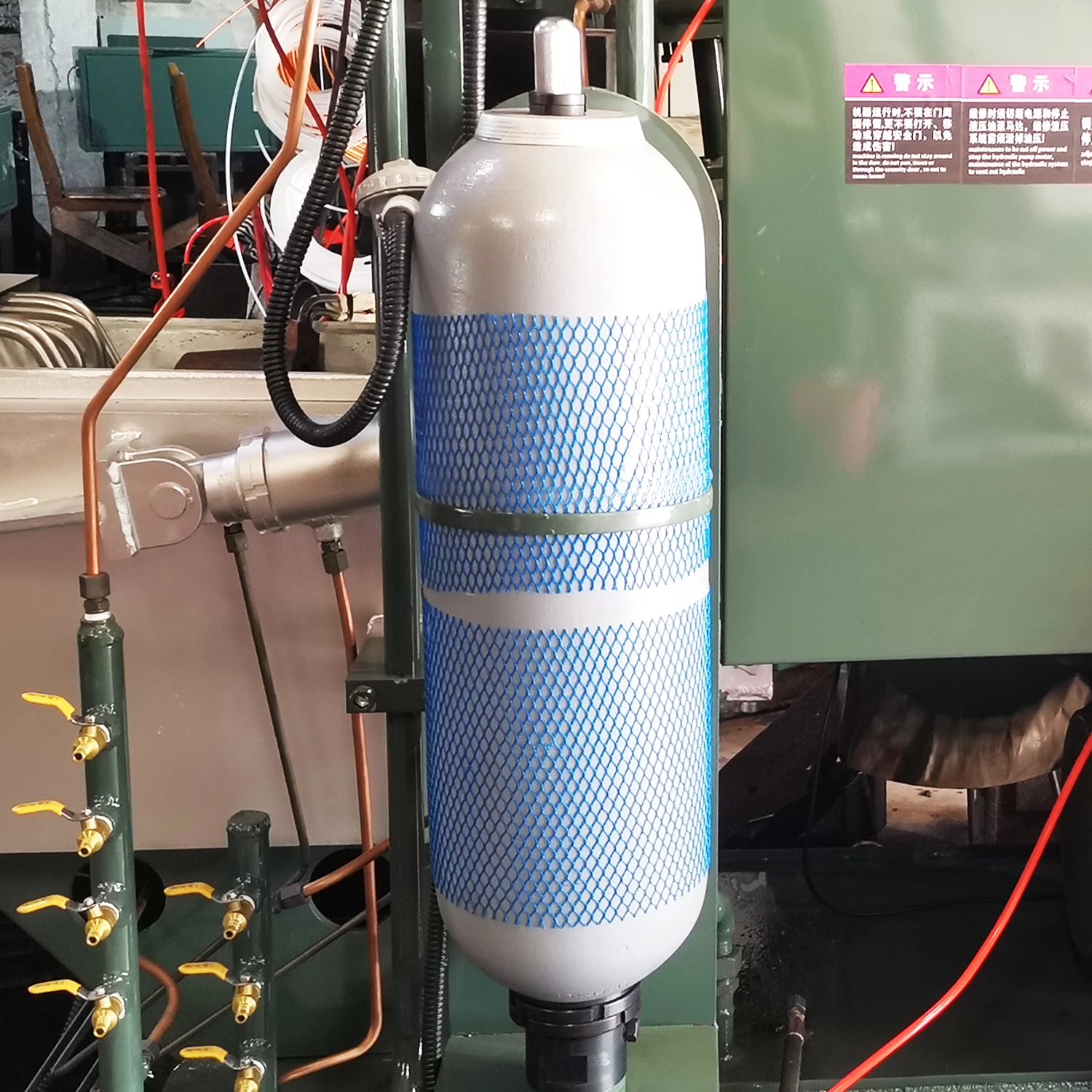

The energy accumulator
|
L-number
|
20L
|
|
Energy accumulator
|
kw
|
7.5HP(10HP)
|
|
The size of the inner pillar(mold installed size)
|
mm
|
275*275
|
|
The mould-opening stroke
|
mm
|
200
|
|
The thickness of the mould(min-max)
|
mm
|
130-280
|
|
The tiebar diameter
|
mm
|
Φ50
|
|
The injecting force
|
KN
|
36
|
|
The injecting stroke
|
mm
|
100
|
|
The injecting rod diameter
|
mm
|
Φ45
|
|
The ejection location
|
mm
|
40
|
|
The die-casting quantity(reality)
|
g
|
60-350
|
|
The injection location
|
mm
|
0
|
|
The capacity of the melting pot(zinc)
|
kg
|
150
|
|
The center distance of front mold screw
|
mm
|
120
|
These machines can make all types of slider body, cap, puller, and other zinc alloy products like pin, box and stoppers.
Our Advantages
Zinc Die Casting Mould Sample
Packing & Delivery
After sales service
Company Profile
Contact Us
FAQ
1. What is the most popular die casting machine to produce zinc slider body?
OLQ-HDCM automatic hot chamber die casting machine is your best choice. There are 15 tons, 25 tons and 30 tons for your selection.
OLQ-HDCM automatic hot chamber die casting machine is your best choice. There are 15 tons, 25 tons and 30 tons for your selection.
2. Is QLQ die casting machine easy for maintenance and what are the easy wearing parts?
Our hot chamber die casting machine is easy for maintenance. The easy-wearing parts are zinc melting pot, shooting pole, electric heating pipe, heating sheath, material cup/entrance, nozzle, steel ring/piston ring.
3. What are your companys advantages?
Firstly, we are very professional and have experienced cooperators; most of them are in zipper and slider business line for more than 15 years. Besides, our customers can enjoy high efficiency, That is to say, we will do almost all things for our clients and all they need to do is to contact us. Also, we offer our customers best price, quality inspection and marvelous after-sale
service.
4. What product can be made on this machine?
This machine can make all types of slider body, cap, puller, and other zinc alloy products like pin, box and stoppers.
5. How about your after-sale service?
We can send our technicians abroad to train your workers and give you technical support.
We can send our technicians abroad to train your workers and give you technical support.
