How to Produce Plastic Long Chain Zipper?

May 15,2023 | QLQ zipper solution supplier



1. Produce Zipper Center Cord

Step-1. Zipper Center Cord Making

1-1QLQ-CC8M

QLQ Guidance
1-QLQ-CC8M, this machine can make single twist centre core and double twist centre core with QLQ-CC16M. 2-This machine can produce 4 kinds of centre cord(3#-10#) at one time.

QLQ-CC8M Automatic Zipper Centre Cord Making Machine (8 heads)

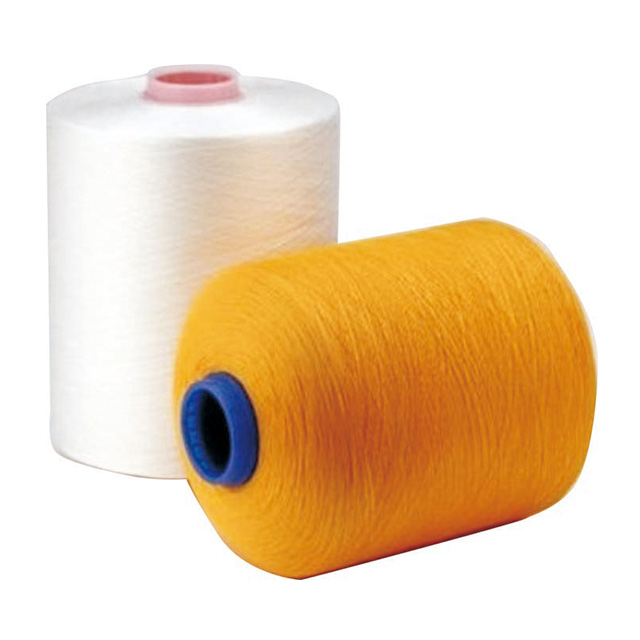

Materials YARN -qlq

QLQ-CC8M Automatic Zipper Centre Cord Making Machine (8 heads)

Materials:yarn

 1-2QLQ-CC16M

QLQ Guidance

1-QLQ-CC16M, this machine can make single twist centre core 2-This machine can produce 4 kinds of centre cord(3#-10#) at one time.

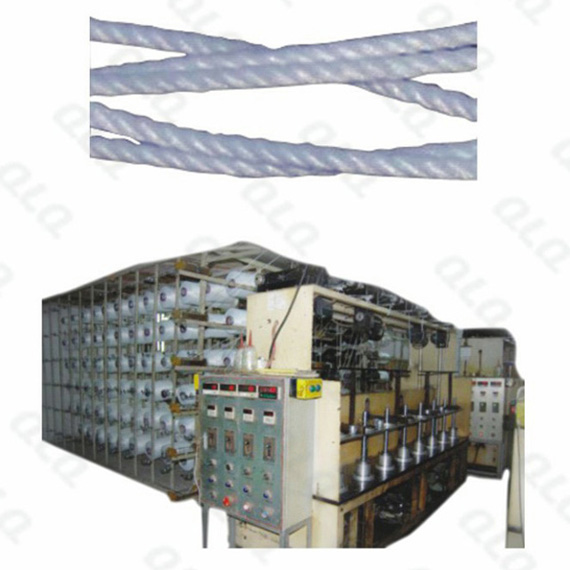

Automatic Zipper Centre Cord Making Machine(16 heads, with bobbin frame but without double twist cord frame) Model No.: QLQ-CC16M
Materials YARN -qlq

Automatic Zipper Centre Cord Making Machine(16 heads, with bobbin frame but without double twist cord frame) Model No.: QLQ-CC16M

Materials:yarn

1-3QLQ-WCCM

QLQ Guidance

QLQ-WCCM this machine can make the weaving centre core for metal zipper and plastic zipper. This centre core is more strong than single twist centre core and double twist centre core for high quality zipper.

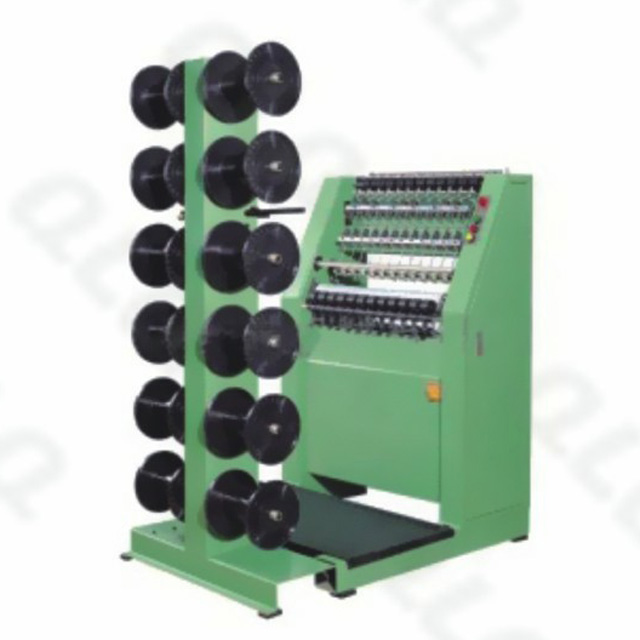

Automatic Zipper Weaving Centre Cord Machine Model No.:QLQ-CC16M
Materials YARN -qlq

Automatic Zipper Weaving Centre Cord Machine Model No.:QLQ-CC16M

Materials:yarn

Step-2. Zipper Center Cord Rolling

QLQ Guidance :QLQ-CCRM

There are two options for your choice, machine with 2 heads or machine with 6 heads.

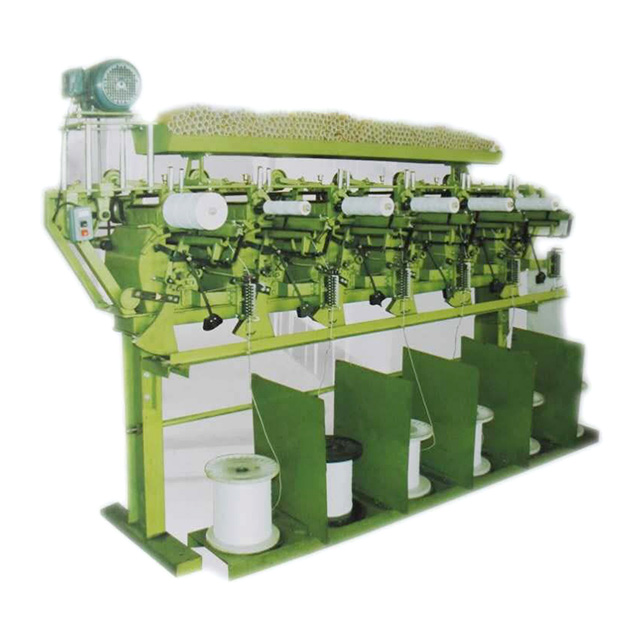

Automatic Zipper Centre Cord Rolling Machine/Bobbin Machine(6 heads with 1 motor)  Model No.:QLQ-CCRM
Materials YARN -qlq

Automatic Zipper Centre Cord Rolling Machine/Bobbin Machine(6 heads with 1 motor)

Model No.:QLQ-CCRM

Centre Cord



2. Produce Zipper Tape

Step-3. Yarn Warping

QLQ Guidance

One set yarn warping machine can match about 15sets zipper tape machine.

QLQ-Automatic Yarn Warping Machine
Various Low Elastic Yarn and Network Yarn -qlq

Automatic Yarn Warping Machine

Model No.:QLQ-YWM

Various Low Elastic Yarn and Network Yarn

Step-4. Zipper Tape Production

QLQ Guidance

At beginning of set-up, we suggest you to buy the zipper tape from our company directly for saving your invest cost at the beginning. 2)Normally for nylon zipper, for 3#--7#, we advise customer to choose 14tapes (maximum width 20mm), for 8#-10#, we advise to choose 12tapes (maximum width 25mm).
QLQ-Automatic Zipper Needle Loom Machine(10tapes, largest weaving width: 25mm)
Various Low Elastic Yarn and Network Yarn -qlq

Automatic Zipper Needle Loom Machine(10tapes, largest weaving width: 25mm)

Various Low Elastic Yarn and Network Yarn

Step-5. Sample-Deying Testing
QLQ Guidance QLQ-SDTM

There have many model for choosing.For example: 12cups, 24cups, 4 barrel bobbins. We will guide you to choose the suitable model according to your workshop.
Automatic Samples Dyeing Testing Machine(12cups)  Model No.: QLQ-SDTM
Plastic Long-chain Zipper 2- Dyeing chemical (customer can buy from local market -qlq

Automatic Samples Dyeing Testing Machine(12cups)

Model No.: QLQ-SDTM

Plastic Long-chain Zipper
2- Dyeing chemical (customer can buy from local market

Step-6. Zipper Bobbing Winding

QLQ Guidance

We provide dyeing machine from 2KG-500KG for your choice, it depends on your actual needs.
Machines Needed
Automatic Tape/Nylon Zipper Bobbin Winding Machine(for dyeing machine)  Model No.: QLQ-DMZ
Plastic Long-chain Zipper -qlq

Automatic Tape/Nylon Zipper Bobbin Winding Machine(for dyeing machine)

Model No.: QLQ-DMZ

Plastic Long-chain Zipper

Step-7. Zipper Tape Dyeing

QLQ Guidance

We provide dyeing machine from 2KG-500KG for your choice, it depends on your actual needs.
Automatic 30kg Dyeing Machine(with 5pcs bobbins)  Model No.: QLQ-DMZ
Plastic Long-chain Zipper 2- Dyeing chemical (customer can buy from local market) -qlq

Automatic 30kg Dyeing Machine(with 5pcs bobbins)
Model No.: QLQ-DMZ

Plastic Long-chain Zipper
2- Dyeing chemical (customer can buy from local market)

Step-8. Zipper Tape Ironing
QLQ Guidance

The machine is used for finalizing multiple specifications of metal tapes and the central cord will not be deviated.

The machine finalizes the tape with appropriate temperature through electric heating.

QLQ-ZTIM Automatic Zipper Tape Ironing Machine (4 tapes)  Model No.: QLQ-ZTIM4

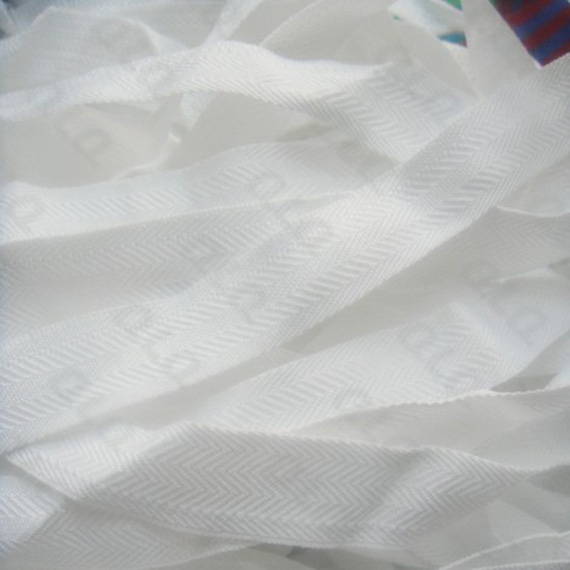

Plastic Zipper Tape -qlq

QLQ-ZTIM Automatic Zipper Tape Ironing Machine (4 tapes)
Model No.: QLQ-ZTIM4

Plastic Zipper Tape



3. Produce Long Chain Plastic Zipper

Step-9. Mix POM Color


QLQ Guidance

We have 50kg, 100kg, 150kg and other capacities.


QLQ-CC8M Automatic Zipper Centre Cord Making Machine (8 heads)

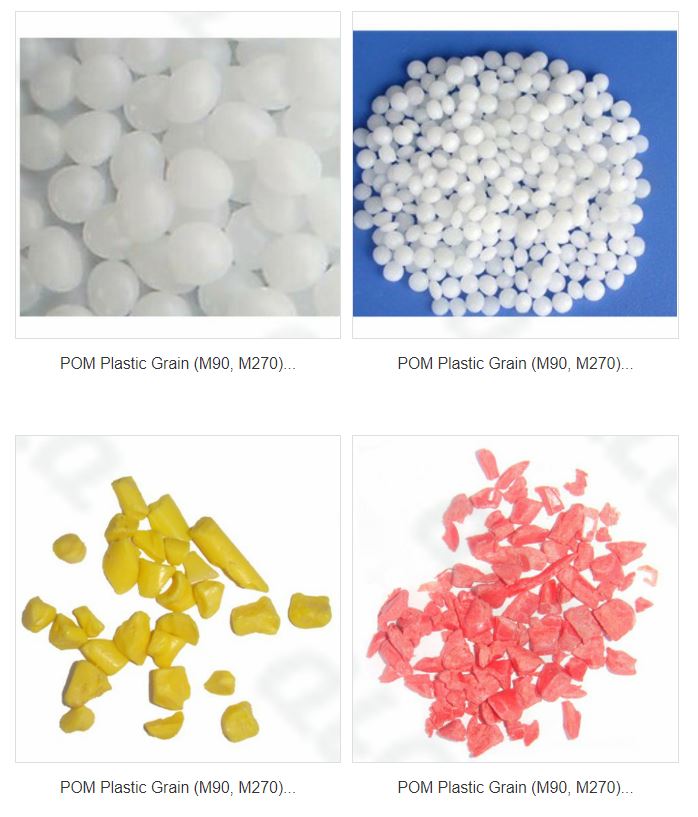

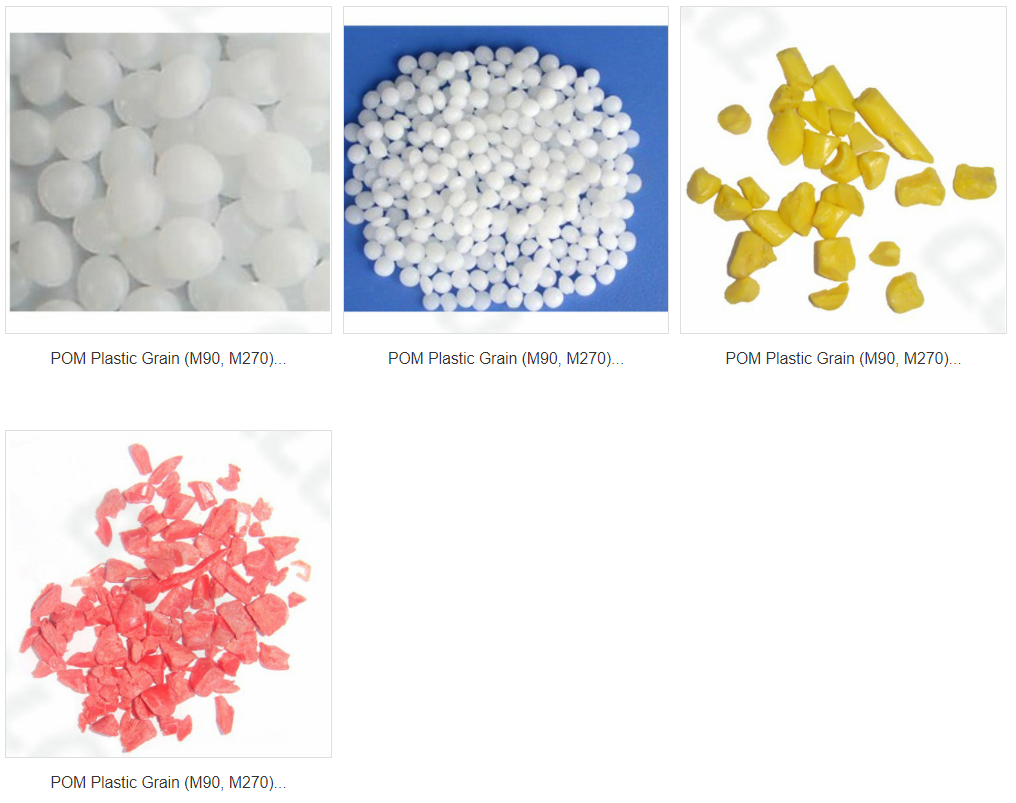

POM Plastic Grain -qlq

QLQ-DMM Automatic POM Material Color Mixing Machine (50kg, 100kg, 150kg ...)
Model No.:QLQ-DMM

POM Plastic Grain



Step-10. Make Plastic Zipper Teeth


QLQ Guidance

There have standard teeth shape mould, also have so many fancy teeth mould. We can give you advise to make which kind of teeth for fashion market.
Automatic Zipper Centre Cord Making Machine(16 heads, with bobbin frame but without double twist cord frame) Model No.: QLQ-CC16M
POM Plastic Grain -qlq

QLQ-DTM Automatic Plastic Zipper Teeth Injection Machine

POM Plastic Grain

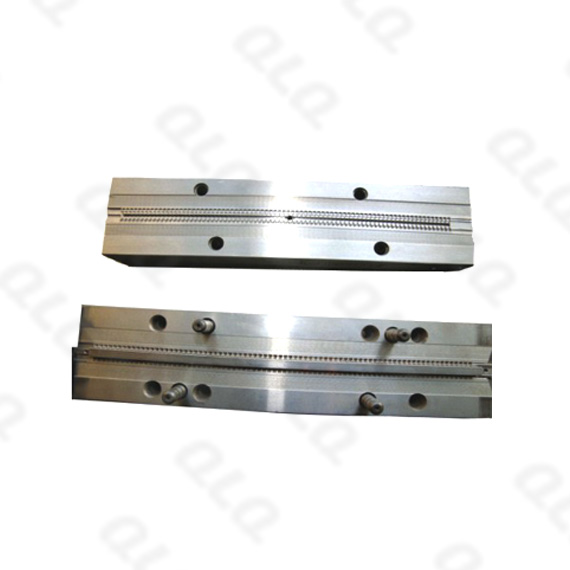

Plastic Zipper Teeth Injection Mould-qlq
Plastic Zipper Tape -qlq

Plastic Zipper Teeth Injection Mould

Plastic Zipper Tape

Step-11. Crush Waste POM Bone

QLQ Guidance

Normally one set plastic teeth injection machine needs one set crush machine.
QLQ-DCM Automatic Plastic Zipper Waste Crushing Machine  Model No.: QLQ-DCM

QLQ-DCM Automatic Plastic Zipper Waste Crushing Machine
Model No.: QLQ-DCM

Centre Cord

Step-12. Long Chain Winding

14-1QLQ-BLWM

QLQ Guidance

This machine normally is for Europe Market where people like to use carton bobbin to warp zipper.
QLQ-Automatic Yarn Warping Machine
Plastic Long-chain Zipper-qlq

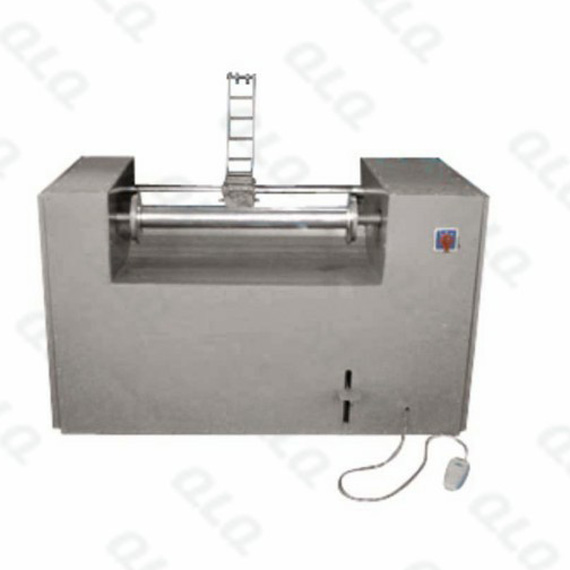

Automatic Bobbin Rolling Type Long-chain Zipper Winding Machine
Model No.: QLQ-BLWM

Plastic Long-chain Zipper

14-2QLQ-LCWM

QLQ-QLQ-LCWM Automatic Long-Chain Zipper Winding Machine (normal model)  Model No.:QLQ-LCWM
Plastic Long-chain Zipper -qlq

QLQ-LCWM Automatic Long-Chain Zipper Winding Machine (normal model)
Model No.:QLQ-LCWM

Plastic Long-chain Zipper

Step-13. Long Chain Zipper Uncoiling


QLQ Guidance

This machine is not belong to requisite machine. Technician can uncoil the zipper by manual. However with this fully automatic machine, uncoil zipper will be more quickly and tidily.
Automatic Samples Dyeing Testing Machine(12cups)  Model No.: QLQ-SDTM
Plastic Long-chain Zipper-qlq

Automatic Bobbin Rolling Type QLQ-LUCM Automatic Uncoiling Machine (for zipper & tape)
Model No.: QLQ-Lucmo

Plastic Long-chain Zipper
