How to Make Plastic Open-end Finished Zipper with Pin Box (Solution 2)

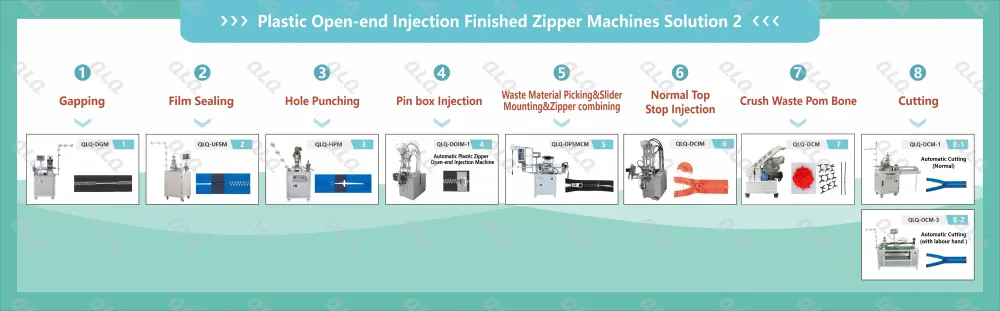

1-Process Flow Chart

2-Process Video

Youtube: https://www.youtube.com/watch?v=RbWYtGG8zJk

3-Process Details

Step 1: Gapping

Machine: QLQ-DGM Material: Plastic Long-chain Zipper

Youtube: https://www.youtube.com/watch?v=3Ppy9jPFceA

Please click the following photos for more details.

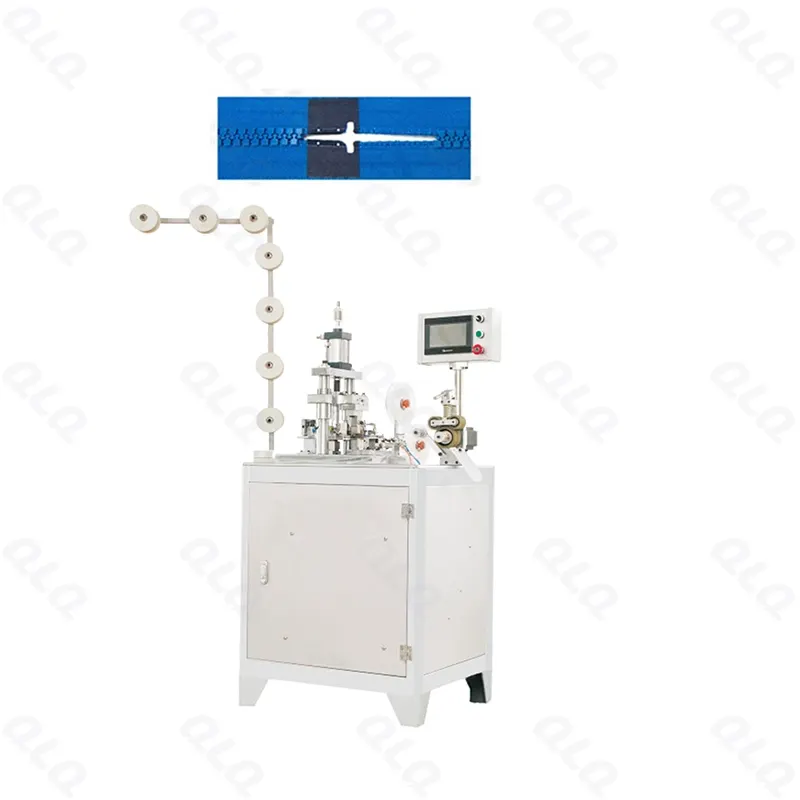

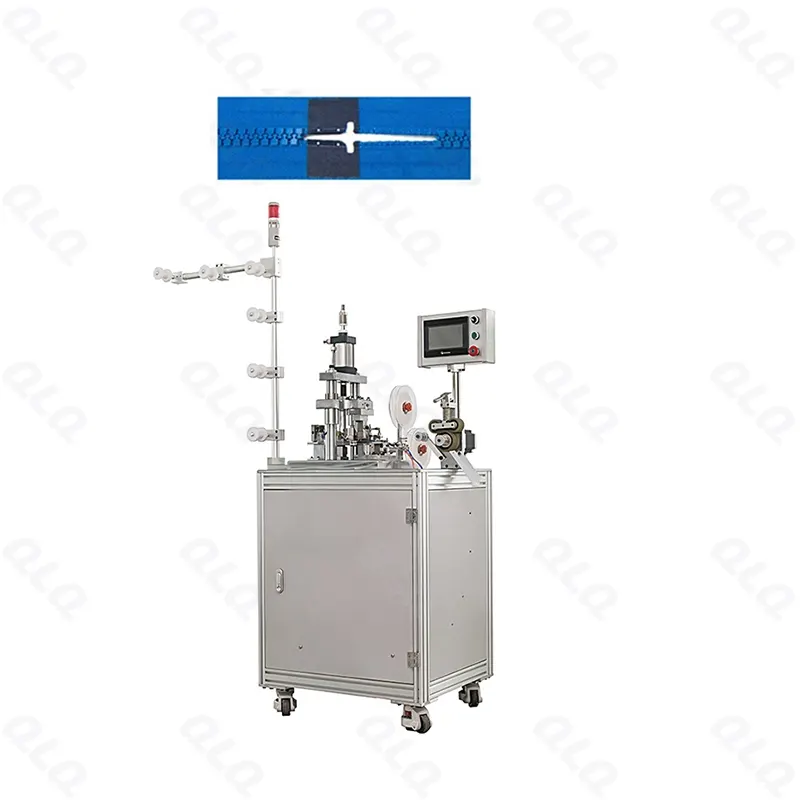

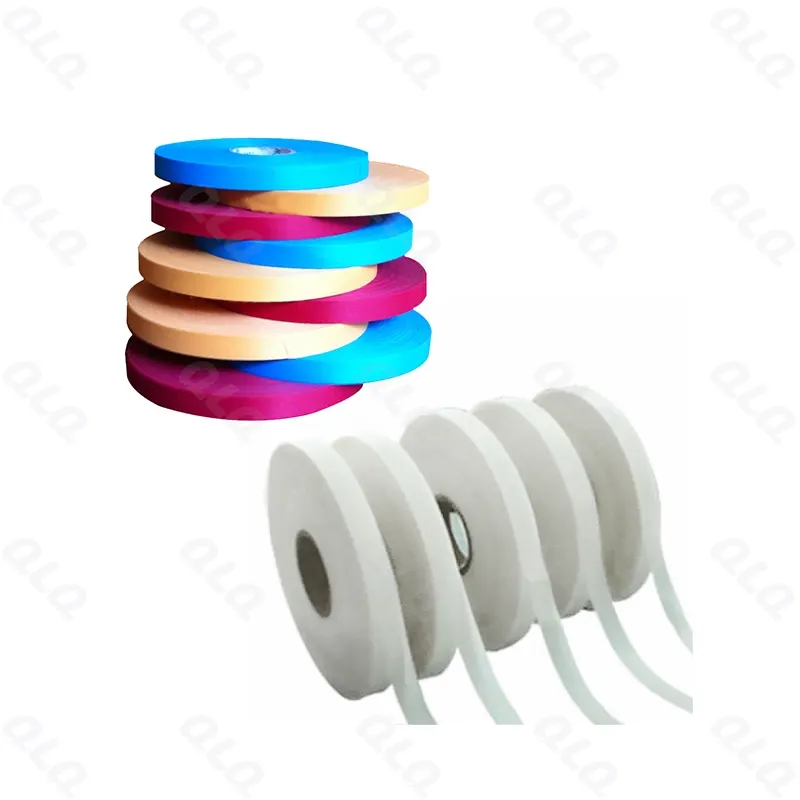

Step 2: Film Sealing

Machine: QLQ-UFSM Material: Transparent Film, Semi-Transparent Film, Fabric Film, Tafeta Film

Machine Youtube link: https://www.youtube.com/watch?v=ZCew-fbGsTU

Please click the following photos for more details.

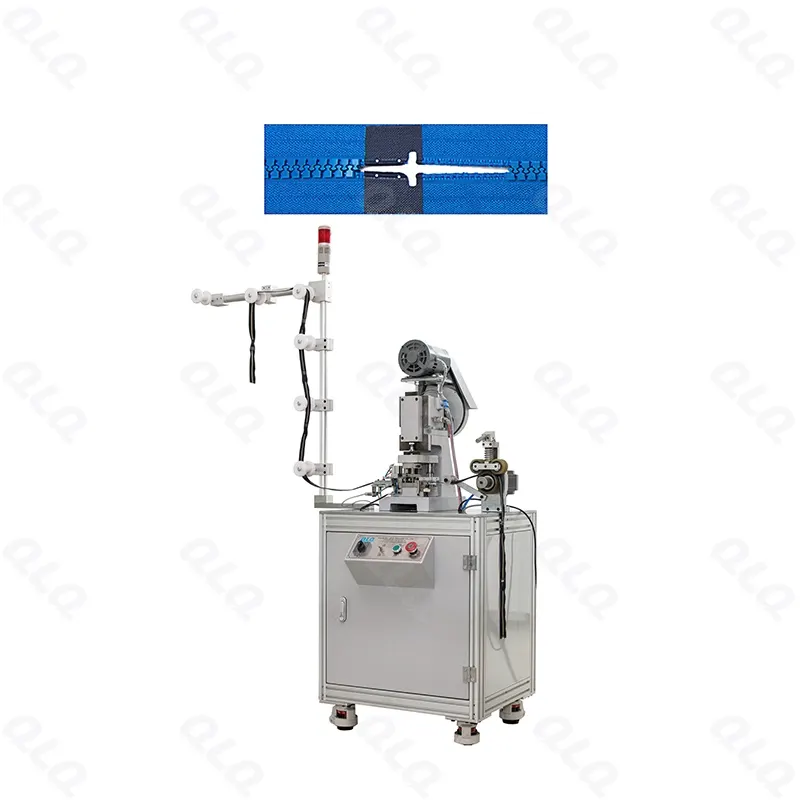

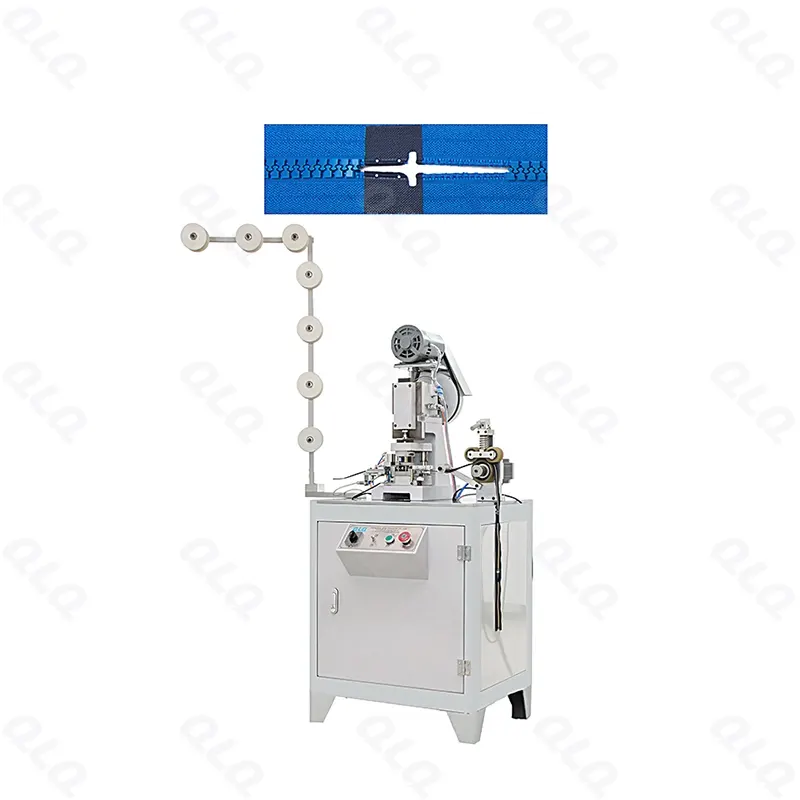

Step 3: Hole Punching

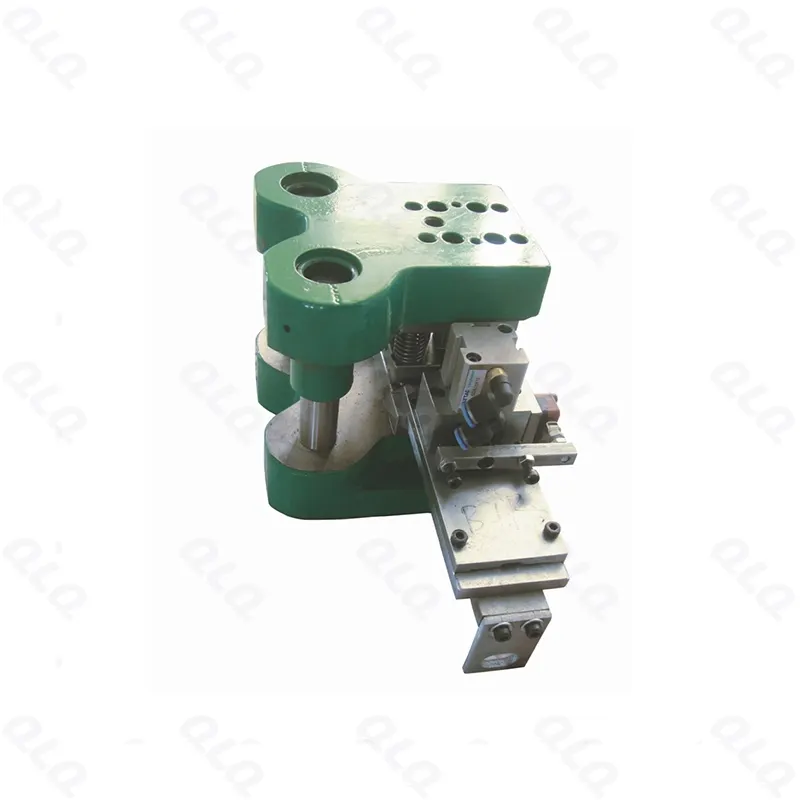

Machine: QLQ-HPM and Hole Punching Mould

Machine Youtube link: https://www.youtube.com/watch?v=K9rBw--R8kw

Please click the following photos for more details.

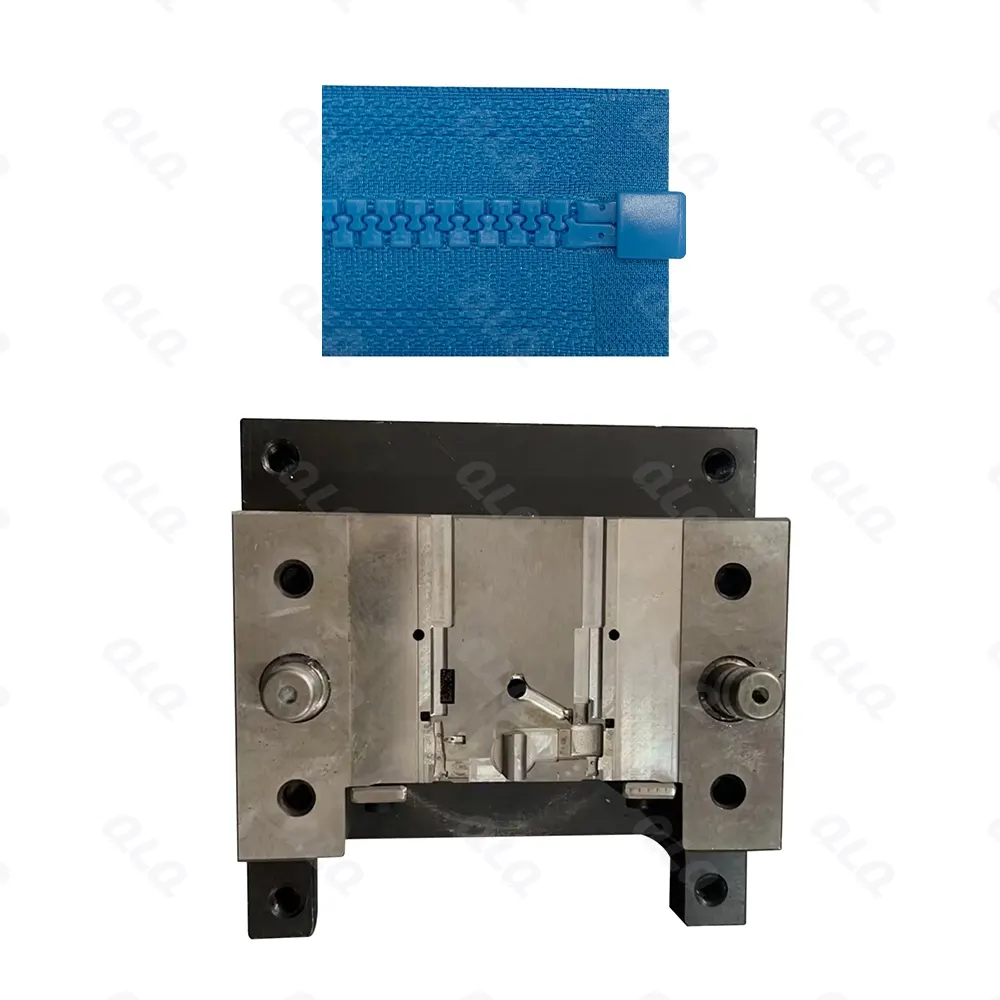

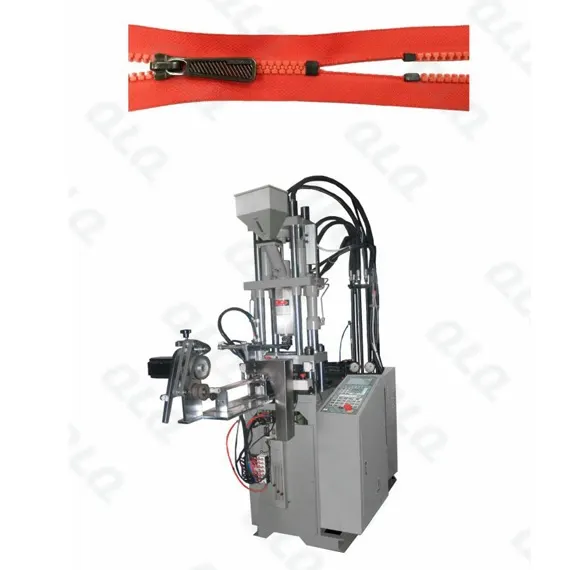

Step 4: Pin Box with Side Insert Top Stop Injection

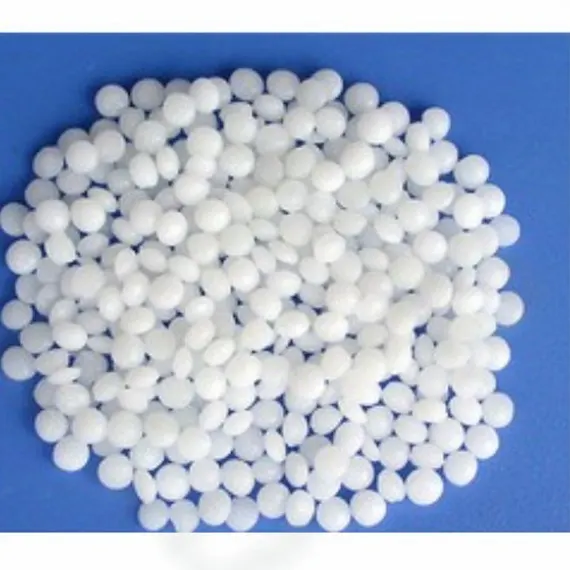

Machine: QLQ-DOIM-1 Material: POM Material

Machine Youtube link: https://www.youtube.com/watch?v=2zvN1oeX4ts

Please click the following photos for more details.

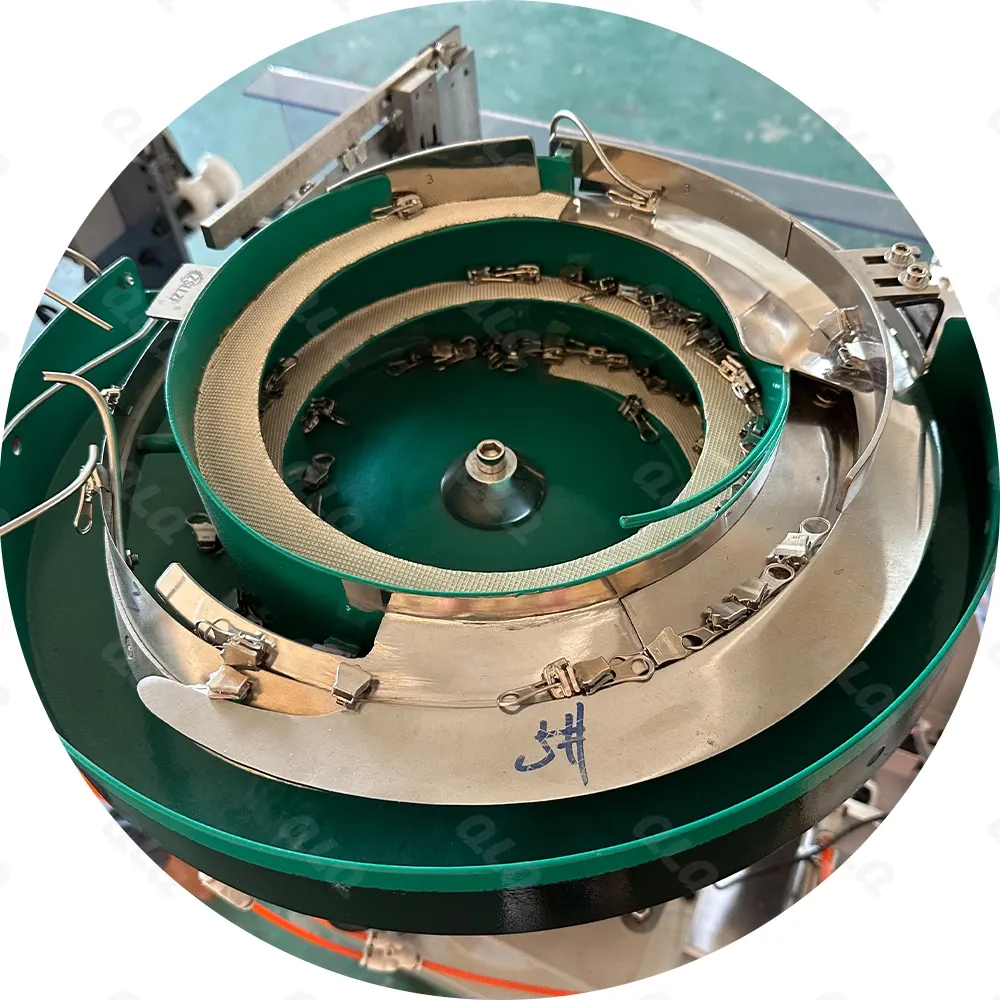

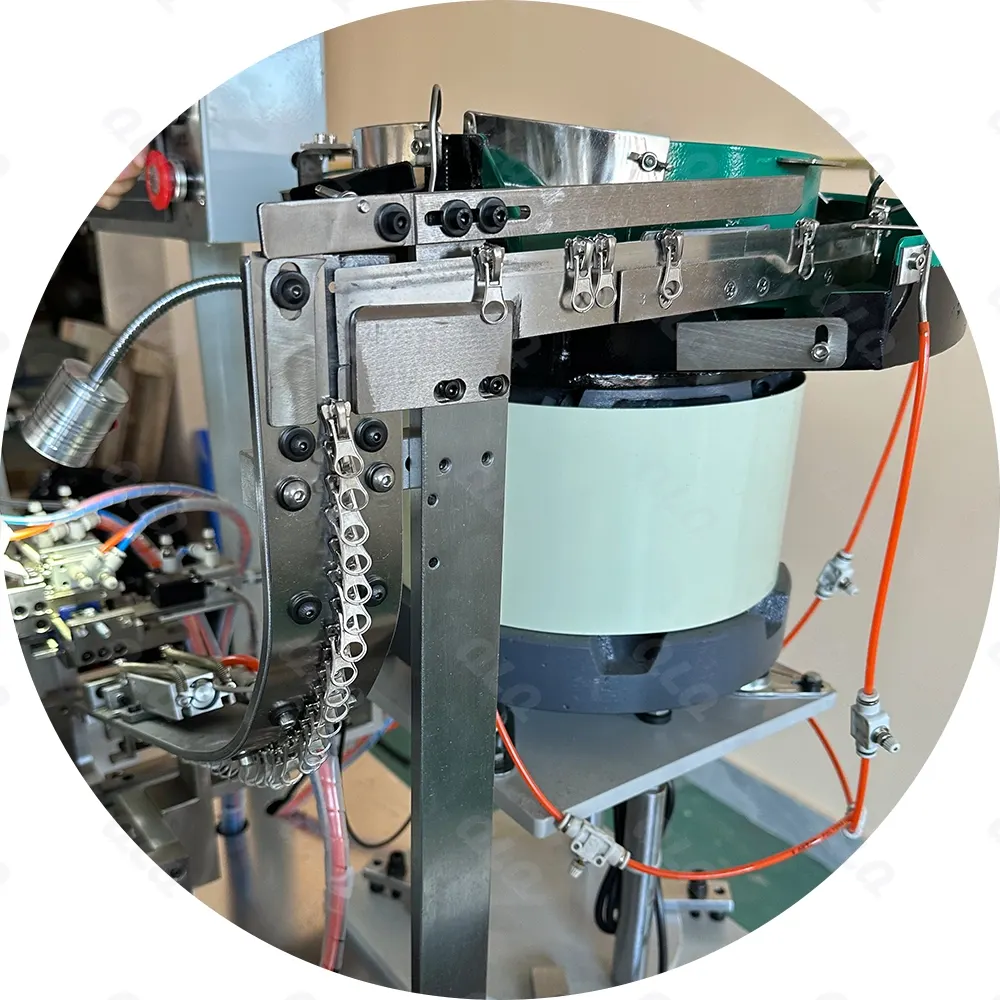

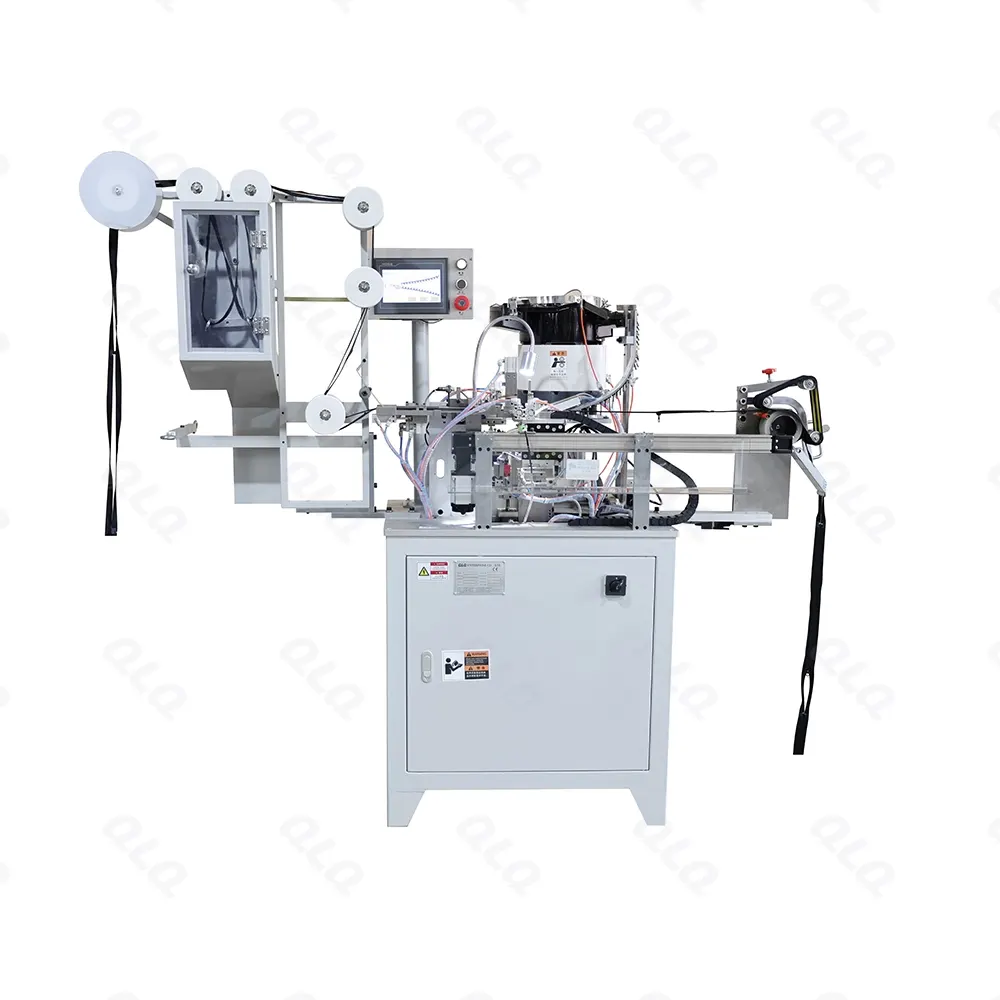

Step 5: Waste Material Picking Slider Mounting & Zipper Combining

Machine: QLQ-DPSMCM

Machine Youtube link: https://www.youtube.com/watch?v=eS0Gi_ny-ZU

Please click the following photos for more details.

Step 6: Normal Top Stop Injection

Machine: QLQ-DCIM

Youtube: https://www.youtube.com/watch?v=acYwGg0pH1Y

Please click the following photos for more details.

Step 7: POM Crushing

Machine: QLQ-DCM

Machine Youtube link: https://www.youtube.com/watch?v=0EogFhpFfMM

Please click the following photos for more details.

Step 8: Cutting

Machine: QLQ-OCM-1

Machine Youtube link: https://www.youtube.com/watch?v=dGhZ7yDxbhM

Please click the following photos for more details.

Machine: QLQ-OCM-3

Machine Youtube link: https://www.youtube.com/watch?v=kMbZkc3u_X0

Please click the following photos for more details.
