How to Make Nylon Open-end Zipper with Injection Pin Box and Top Stop (Solution 3)

If you want to know the detailed process, please leave us a message!

How to Make Nylon Open-end Zipper with Injection Pin Box and Top Stop(Solution 3)

How to Make Nylon Open-end Zipper with Metal Pin Box and Top Stop(Solution 3)

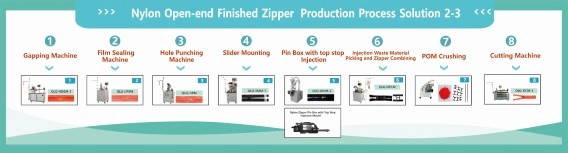

1-Process Chart

2-Process Details

Step 1: Gapping

Machine: QLQ-NDGM-1 Material: Nylon Long-chain Zipper

Youtube: https://www.youtube.com/watch?v=__KMw0NG-DA

Please click the following photos for more details.

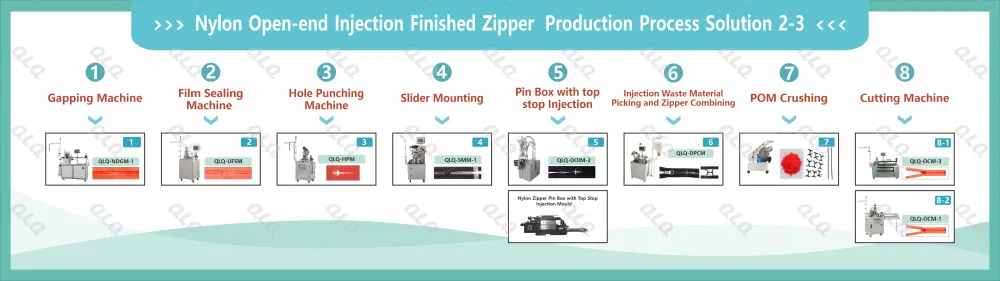

1-Process Chart

Step 2: Film Sealing

Machine: QLQ-UFSM Material: Transparent Film, Semi-Transparent Film, Fabric Film, Tafeta Film

Youtube: https://www.youtube.com/watch?v=e2mpthQLbug

Please click the following photos for more details.

Step 3: Hole Punching

Machine: QLQ-HPM and Hole Punching Mould

Youtube: https://www.youtube.com/watch?v=iMXdZQhjcAU

Please click the following photos for more details.

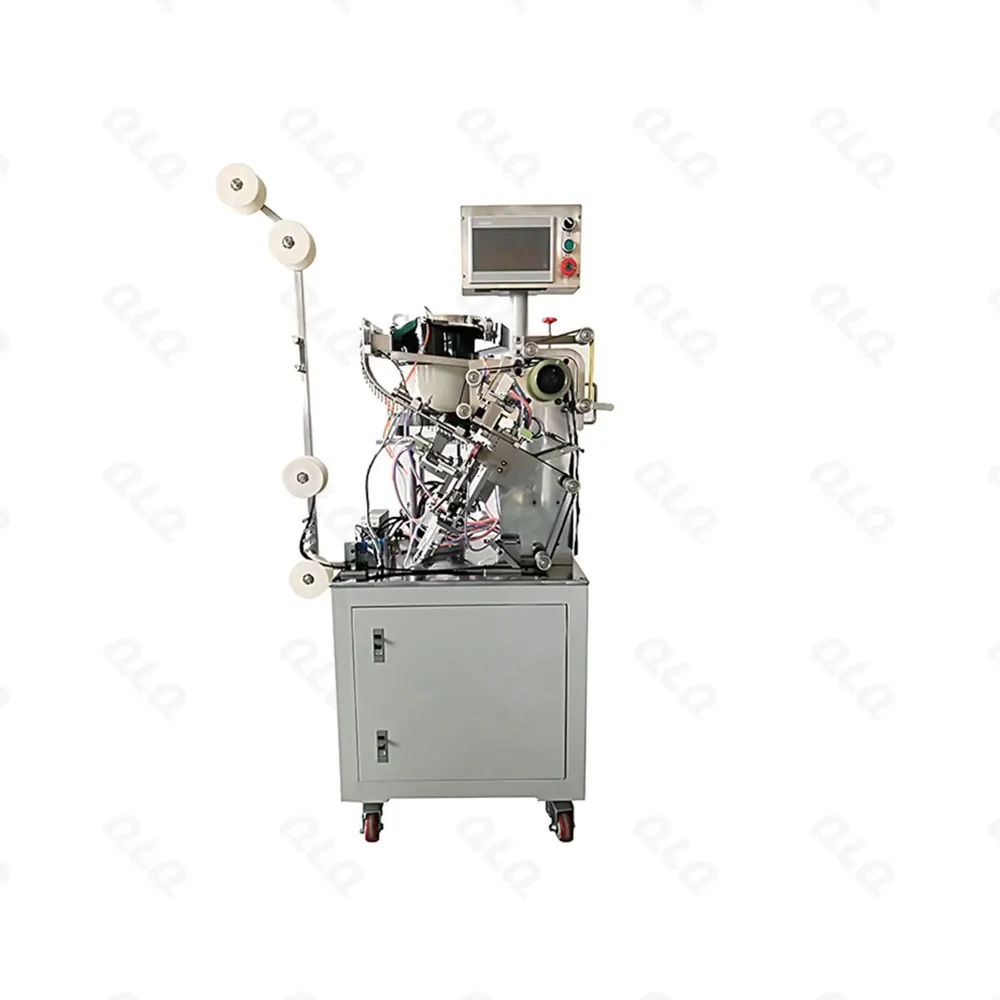

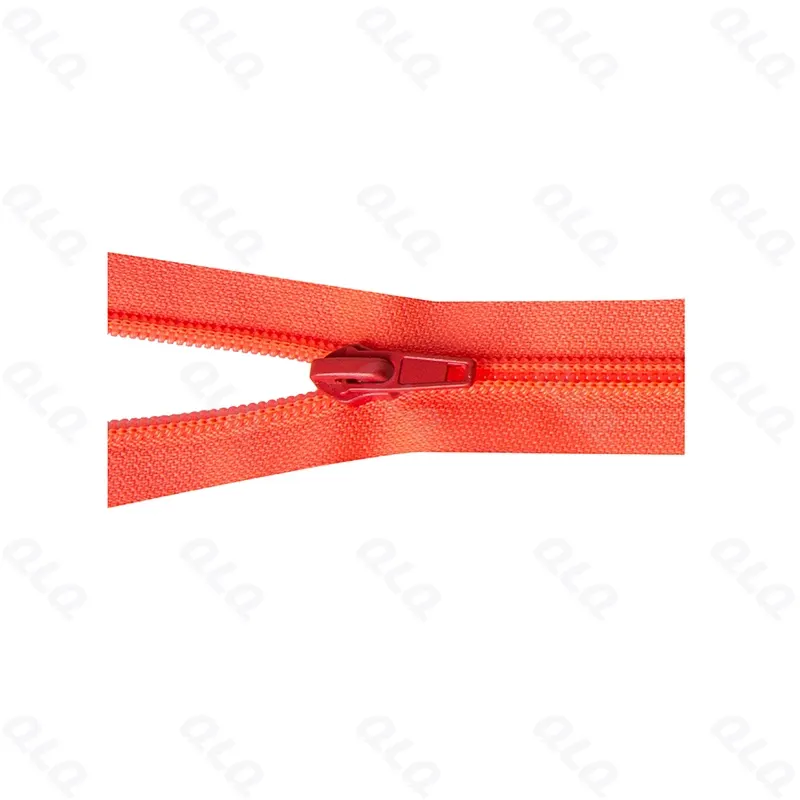

Step 4: Slider Mounting

Machine: QLQ-SMM-1 Material: Slider

Youtube: https://www.youtube.com/watch?v=fADvfLysp-s

Please click the following photos for more details.

Step 5: Pin Box with Top Stop Injection

Machine: QLQ-DOIM-2

Youtube: https://www.youtube.com/watch?v=grEDUtOjcdo

Please click the following photos for more details.

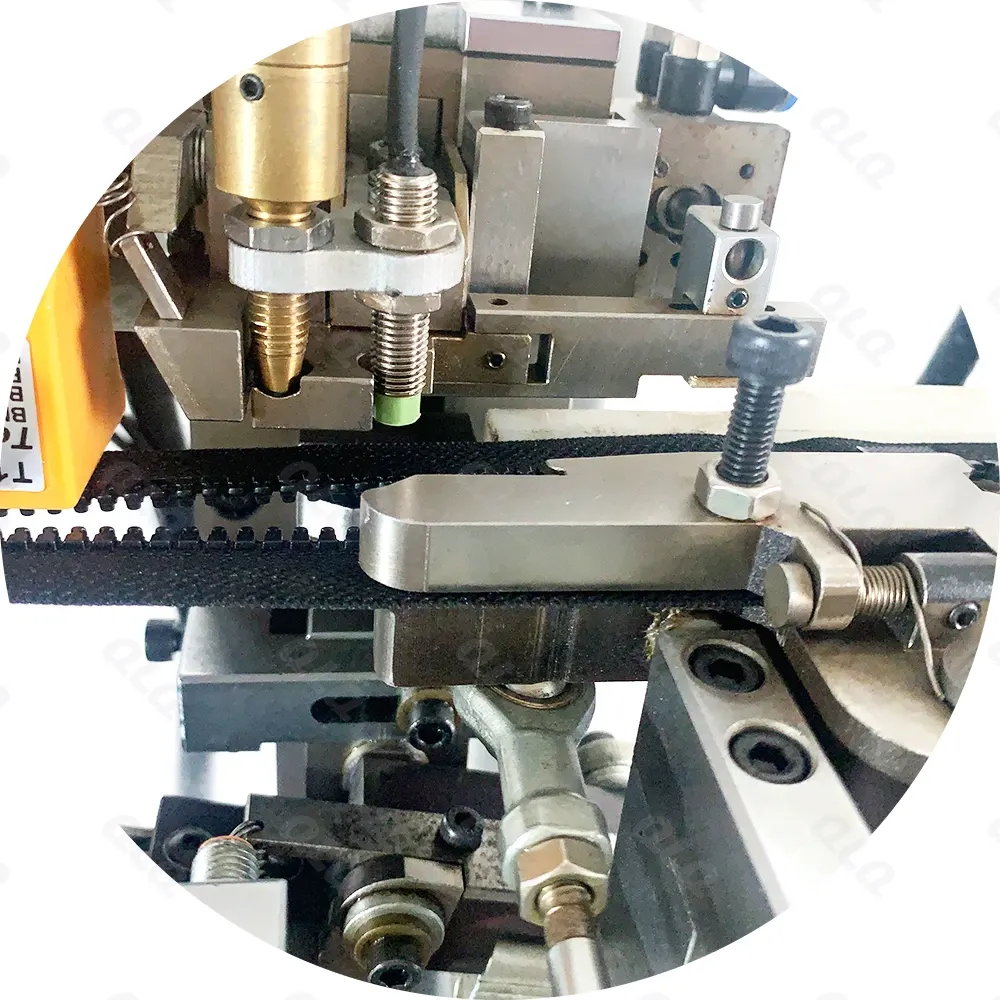

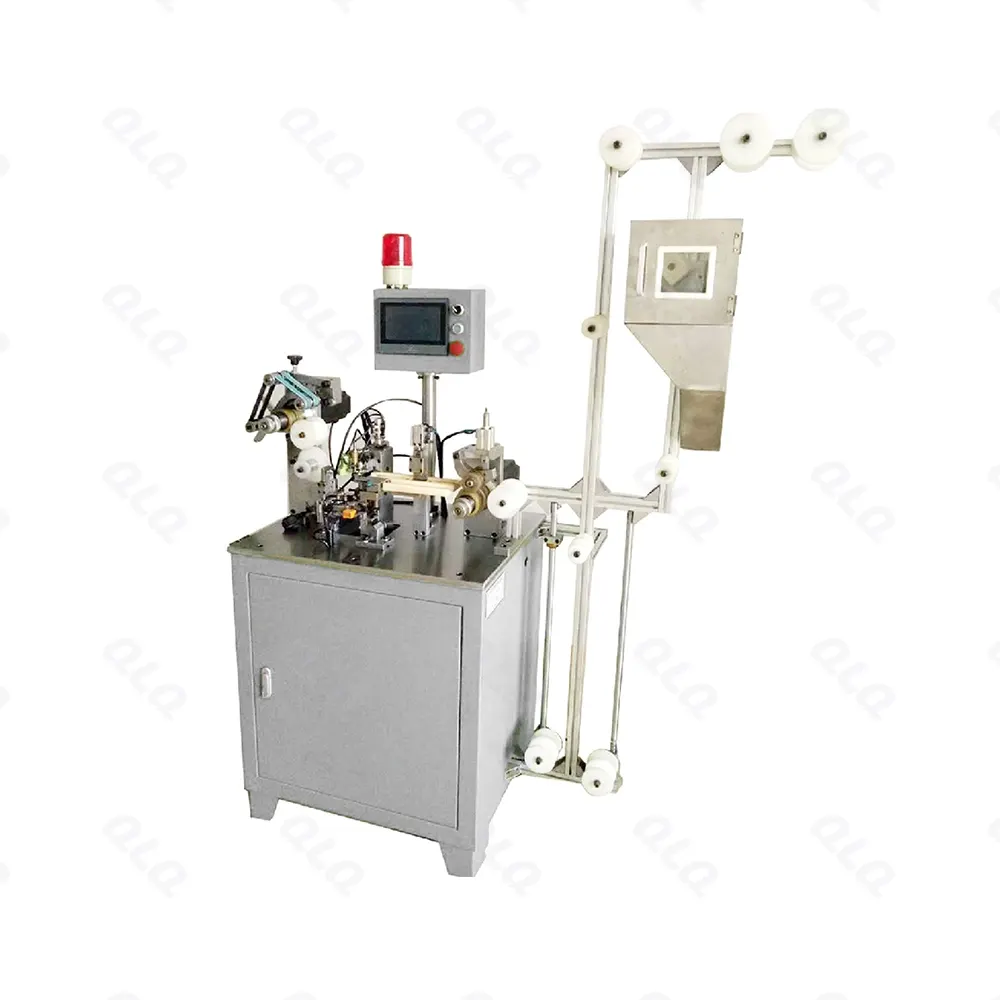

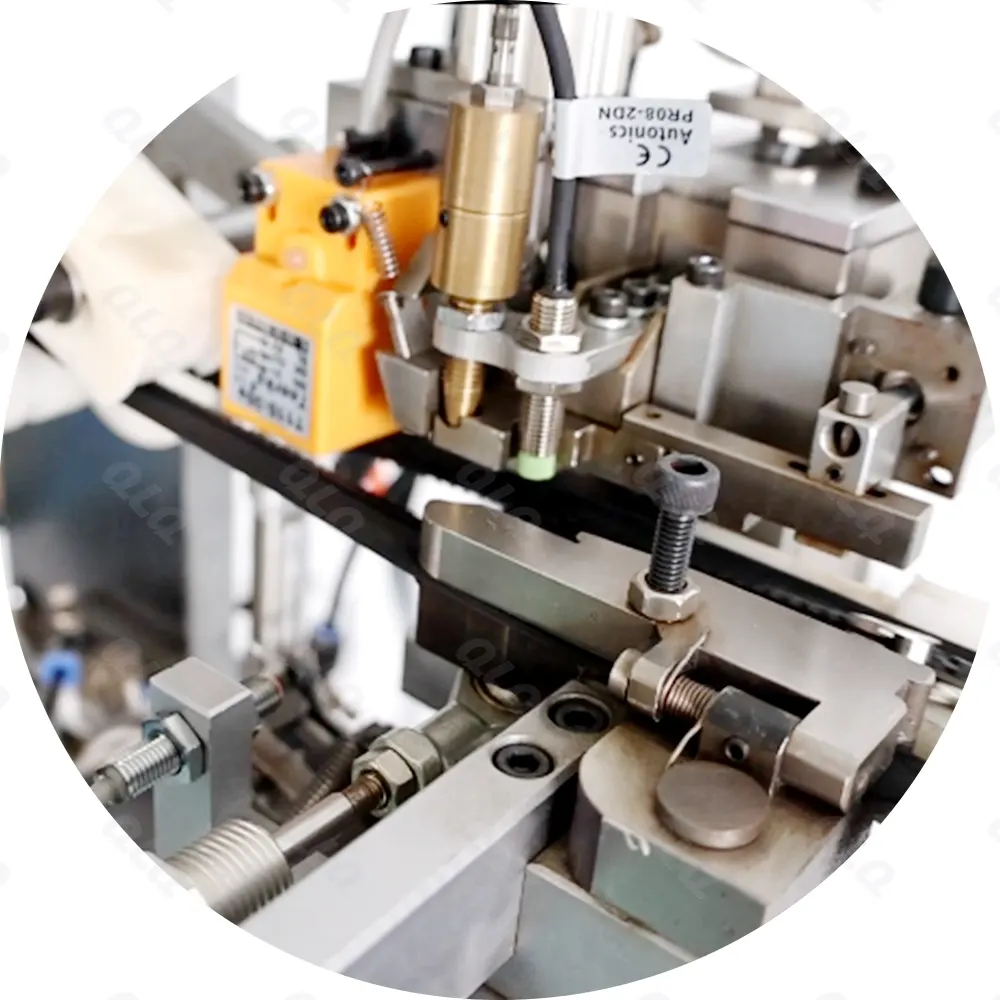

Step 6: Injection Waste Material Picking and Zipper Combining Machine

Machine: QLQ-DPCM

Youtube: https://www.youtube.com/watch?v=JGSUL1EtNQQ

Please click the following photos for more details.

Step 7: POM Crushing

Machine: QLQ-DCM

Youtube: https://www.youtube.com/watch?v=0EogFhpFfMM

Please click the following photos for more details.

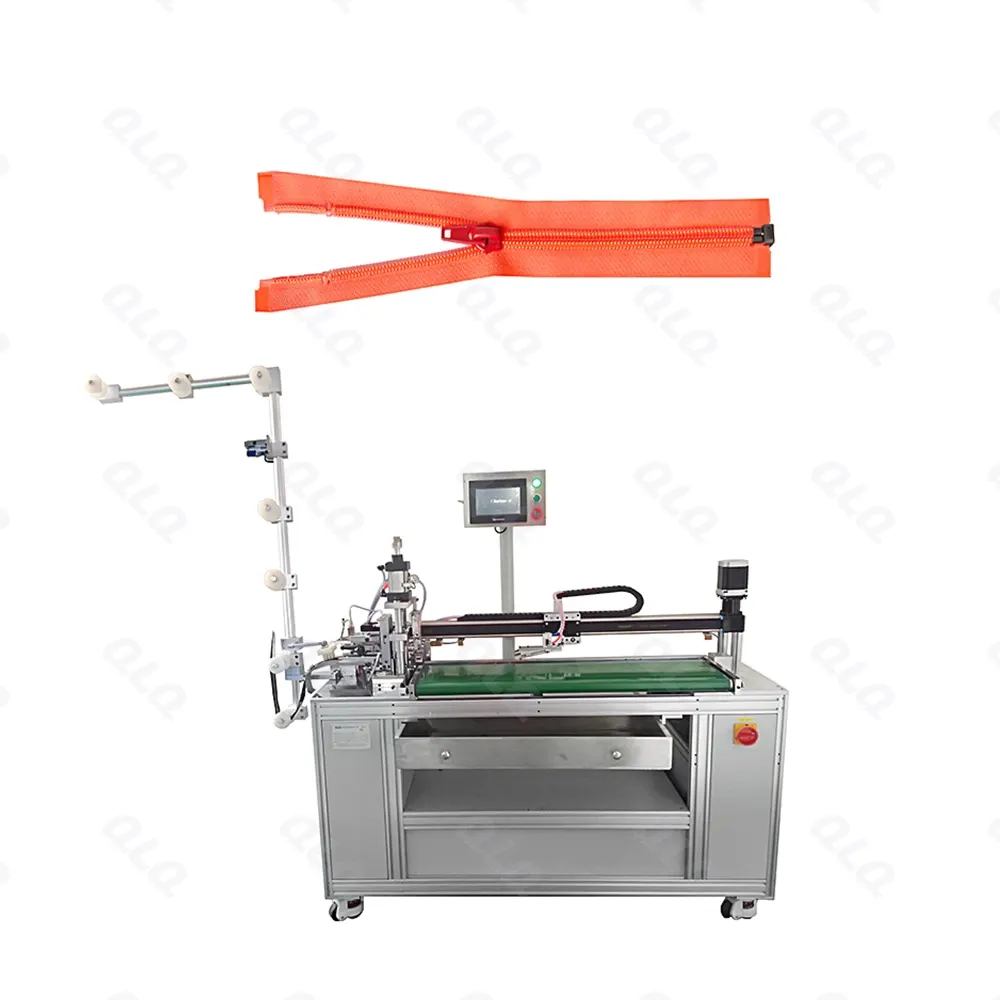

Step 8: Zipper Cutting

Machine: QLQ-OCM-3

Youtube: https://www.youtube.com/watch?v=kMbZkc3u_X0

Please click the following photos for more details.

Machine: QLQ-OCM-1

Youtube: https://www.youtube.com/watch?v=MDnSHSHKp-M
